SR Series SK230SRLC-5

SK230SRLC-5

SR Series

Product specifications SK230SRLC-5

Operating weight:
23,800 kg

Engine rated power:
124 kW / 2,000 min-1 (ISO 14396)

Bucket capacity:
0.80 m3

Image gallery

  • SK230SRLC-5-1

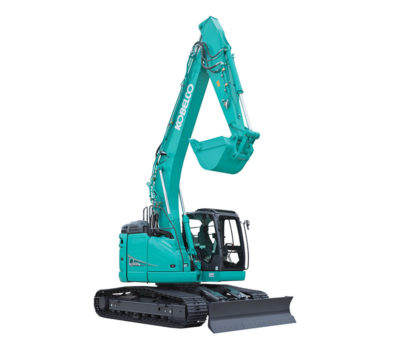

  • SK230SRLC-5-2

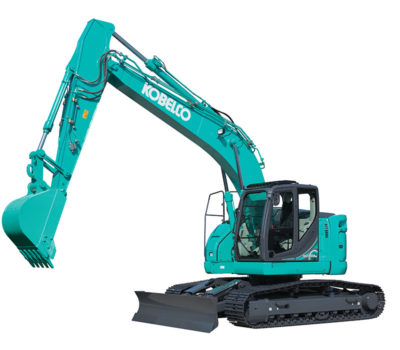

  • SK230SRLC-5-4

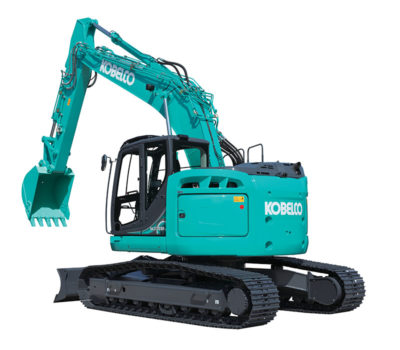

  • SK230SRLC-5-3

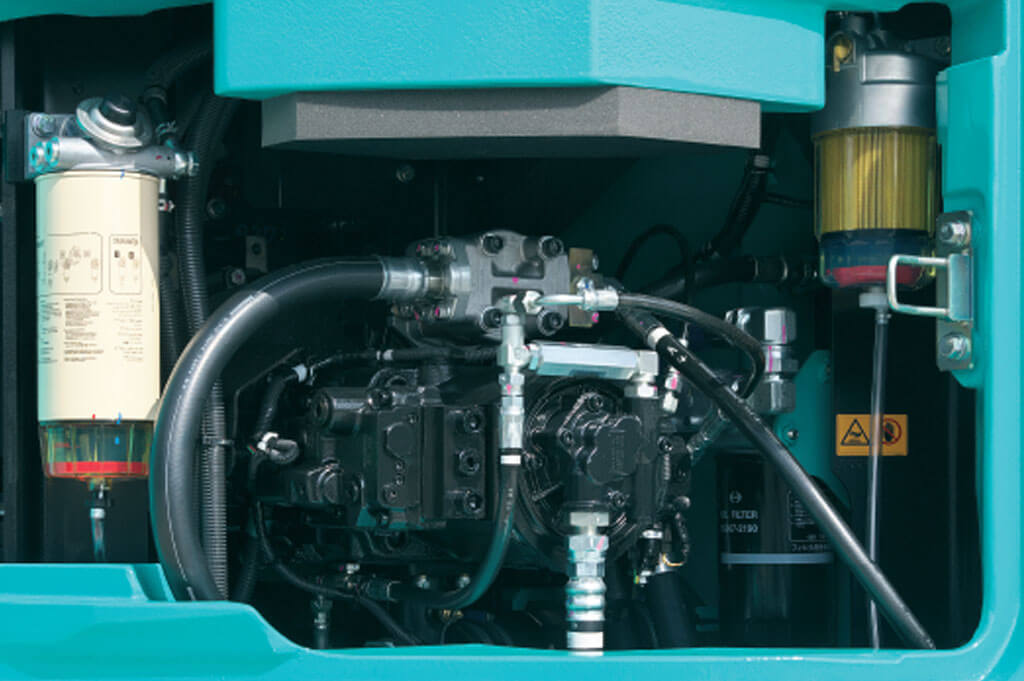

  • SK230SRLC-5-14

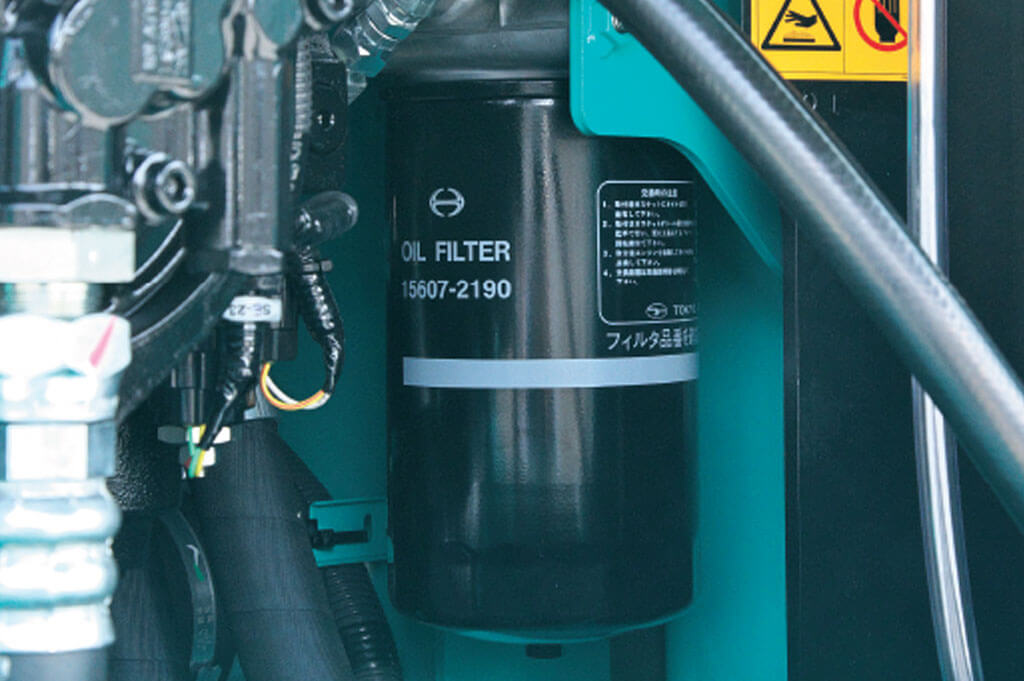

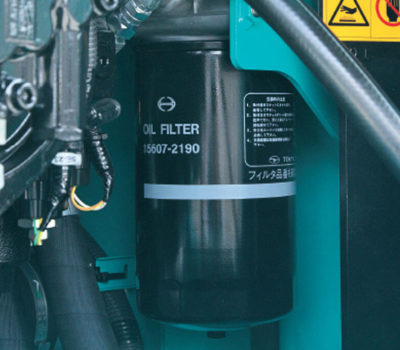

  • SK230SRLC-5-13

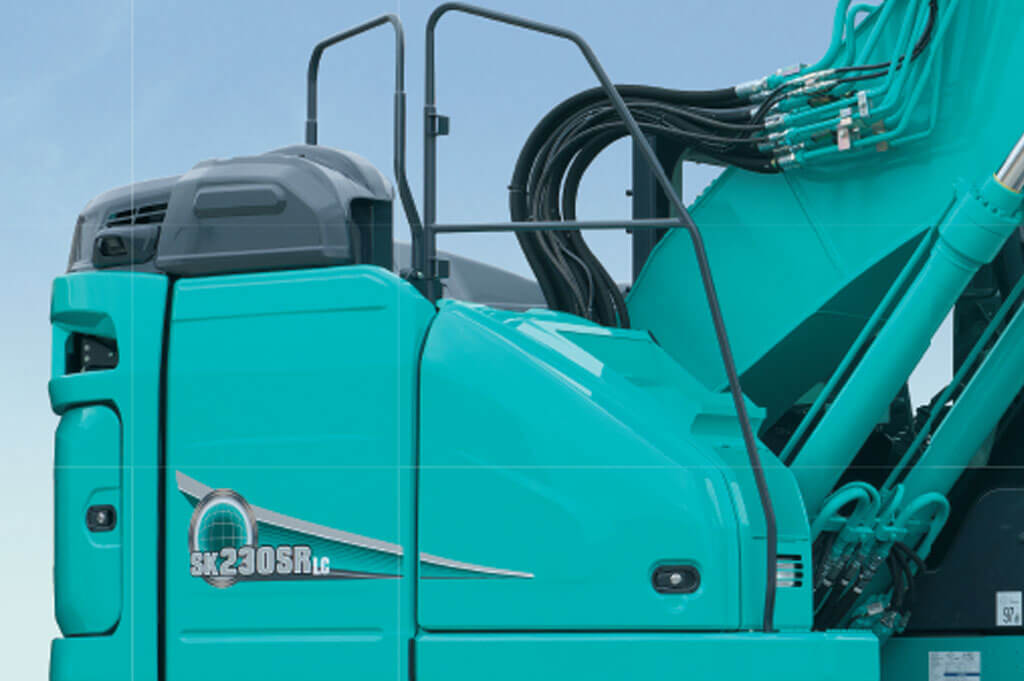

  • SK230SRLC-5-12

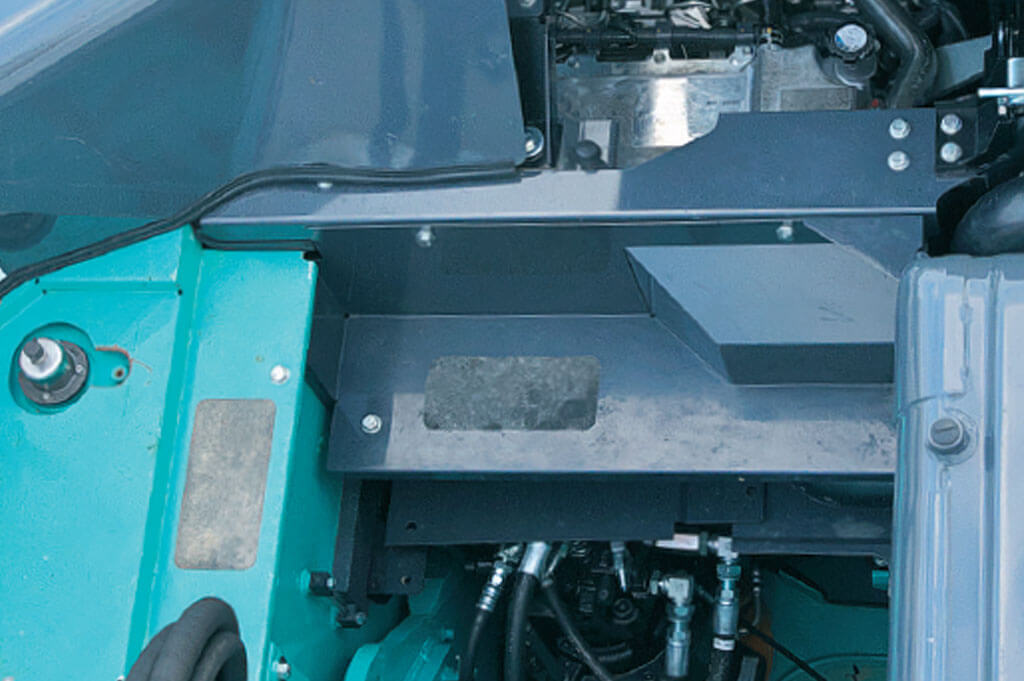

  • SK230SRLC-5-11

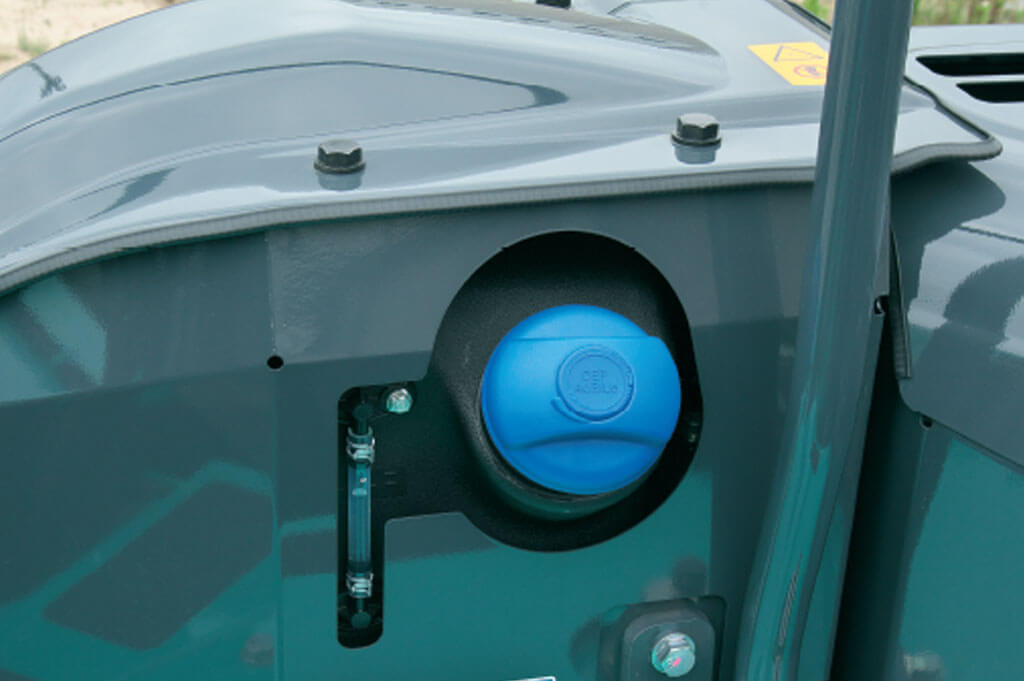

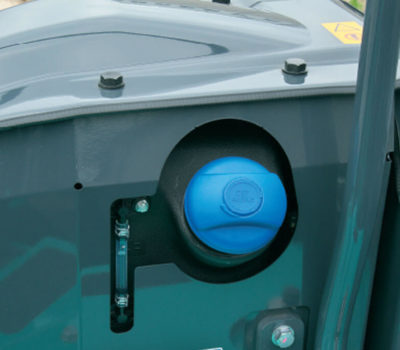

  • SK230SRLC-5-10

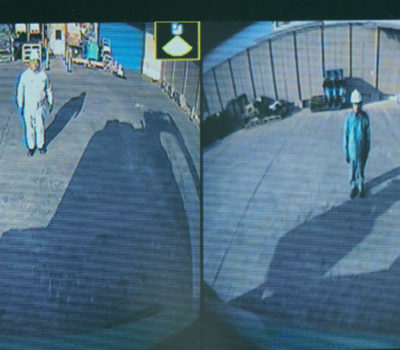

  • SK230SRLC-5-8

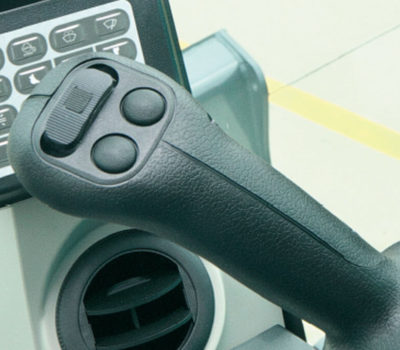

  • SK230SRLC-5-9
  • SK230SRLC-5-7

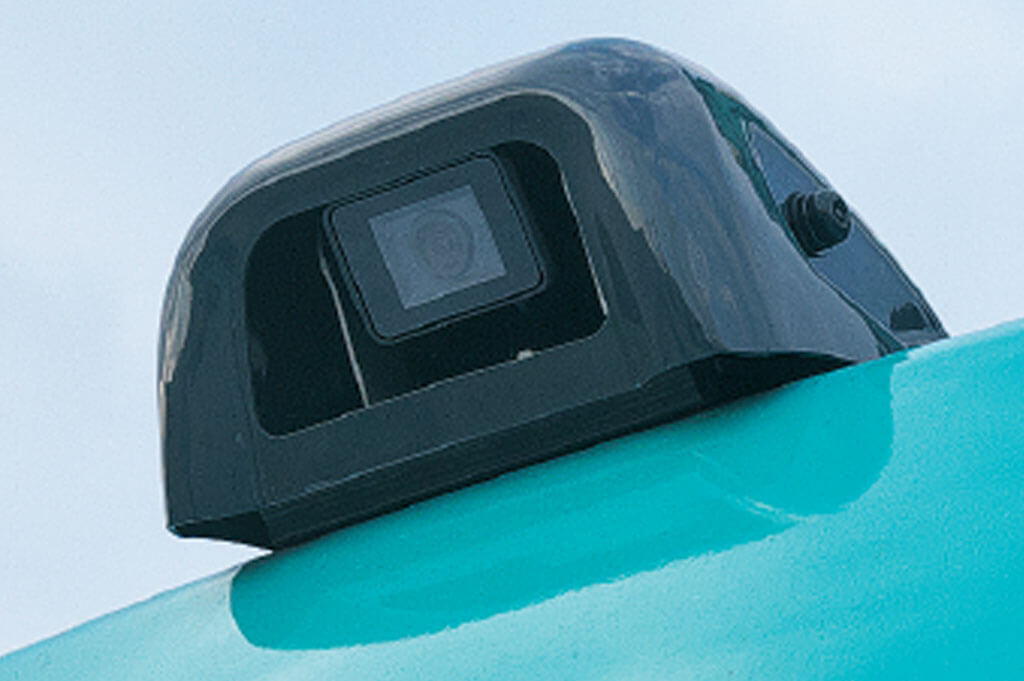

  • SK230SRLC-5-6

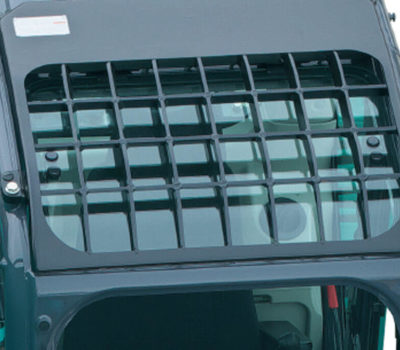

  • SK230SRLC-5-5

Product specifications

ENGINE
Model: HINO J05EUM-KSSL
Type: Direct injection, water-cooled, 4-cycle, 4-cylinder diesel engine with intercooler turbocharger (complies with EU Stage IV)
Fuel tank: 330.0
Displacement: 5.123 L
Rated power output: 124 kW / 2,000 min-1 (ISO 14396)

HYDRAULIC SYSTEM
Type: Two variable displacement pumps + one gear pump
Max. discharge flow: 2 x220 L/min (main), 1 x 20 L/min (gear)
Relief Valve Setting: 34.3/{37.8} MPa
Swing motor: Axial piston motor
Hydraulic Oil tank: 114 (230) L

DIGGING FORCE
Bucket digging force (Standard): 120 132*
Arm crowding force (Standard): 88 96.8*
Standard label: 2.87 m
Power boost engaged: UNIT = kN * Power Boost engaged

TRAVEL FORCE
Travel motors: 2 x axial-piston, two-step motors
Travel speed: 5.8/3.5 km/h
Swing speed: 12.6 min-1
Drawbar pulling force: 229
