Mini excavator SK55SRX-6

SK55SRX-6

Mini excavators

Product specifications SK55SRX-6

Engine rated power:
28.3kW / 2,400rpm (ISO9249)

Bucket capacity:
0.16 m3

Image gallery

  • SK55SRX-6-3

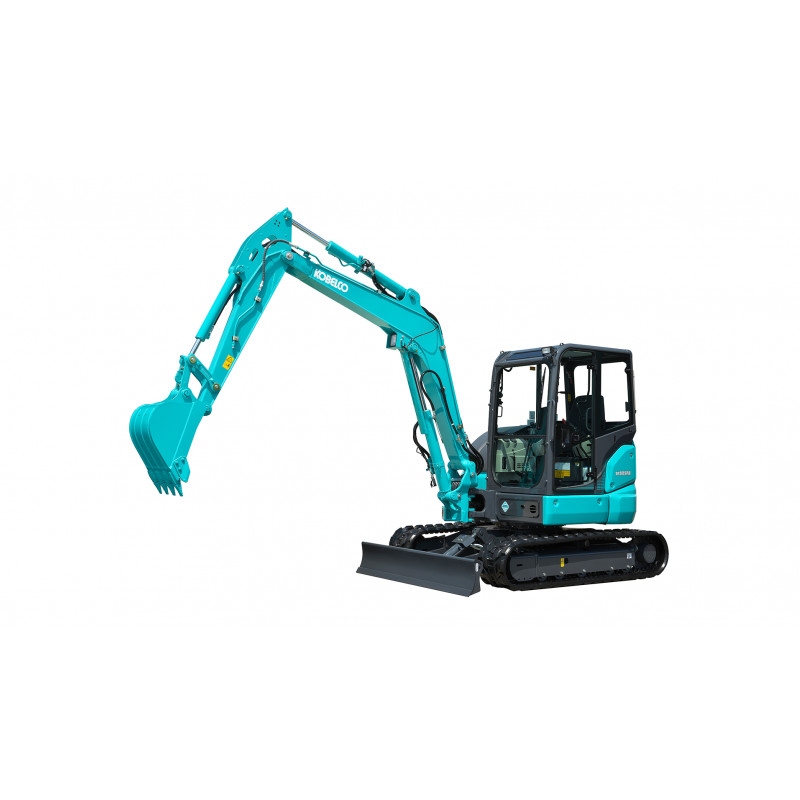

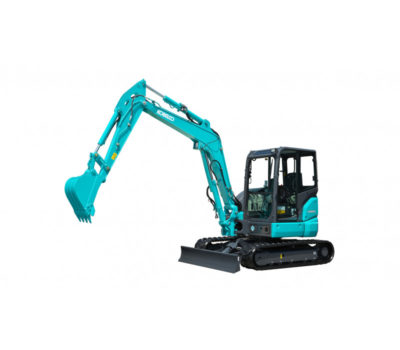

  • SK55SRX-6-1
  • SK55SRX-6-2
  • SK55SRX-6-4
  • SK55SRX-6-5

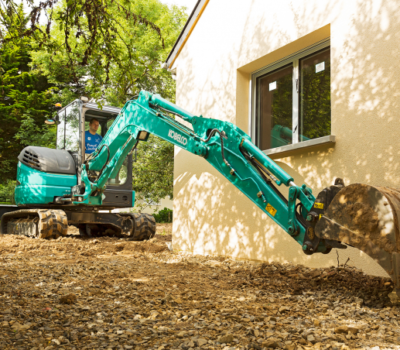

  • SK55SRX-6-6

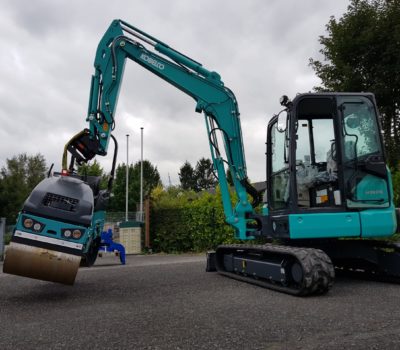

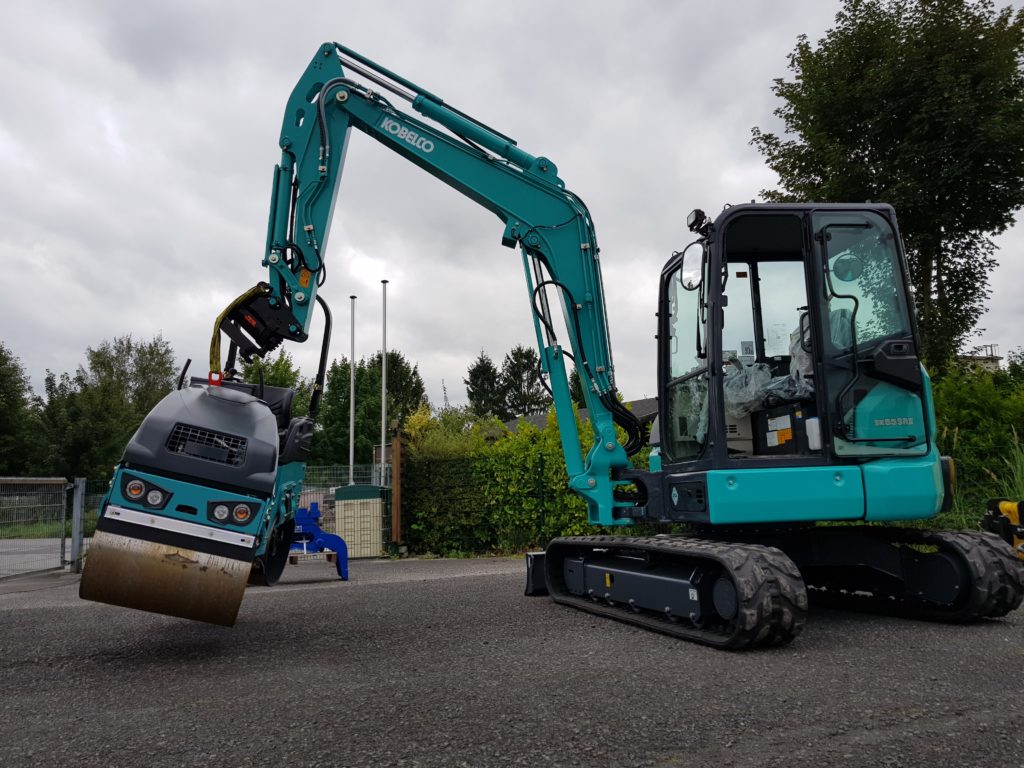

  • SK55SRX-6-7

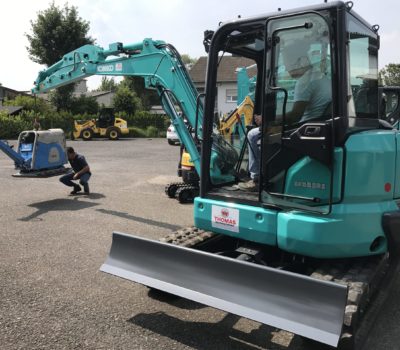

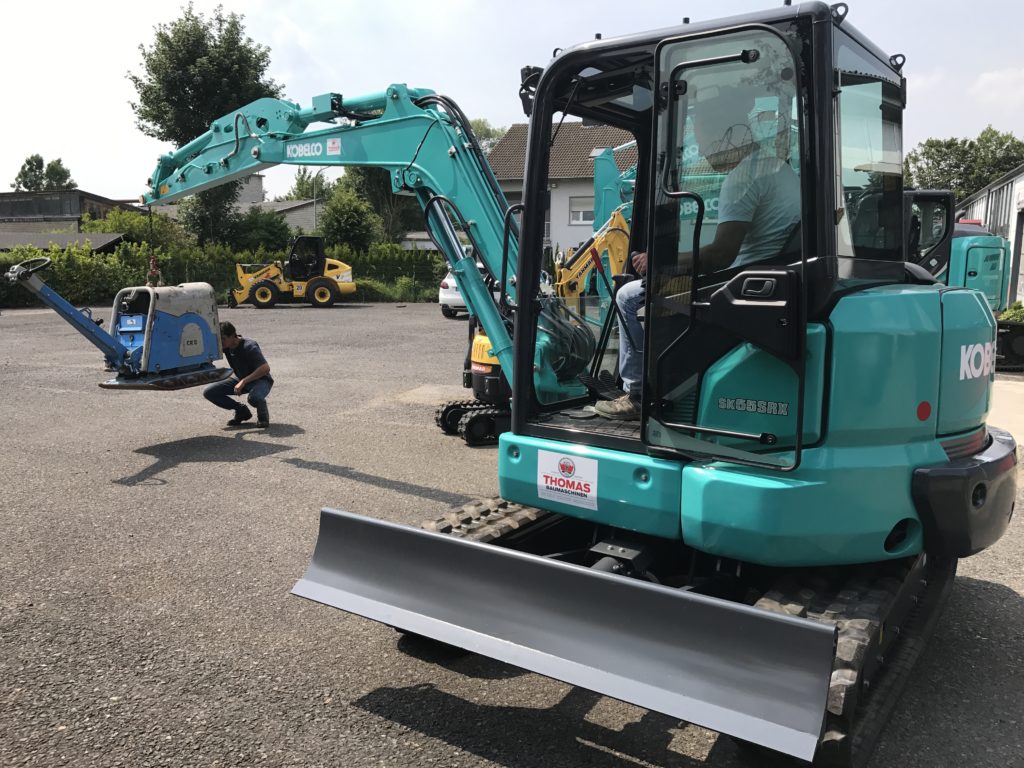

  • SK55SRX-6-8

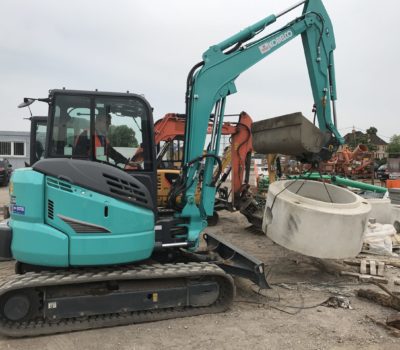

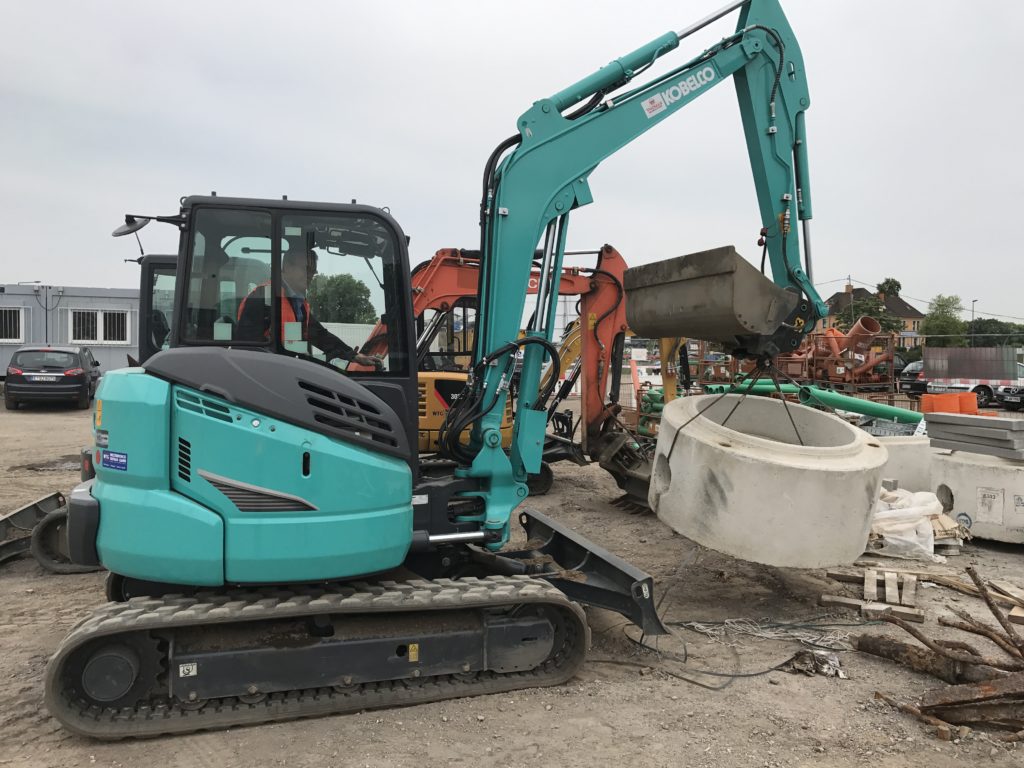

  • SK55SRX-6-9

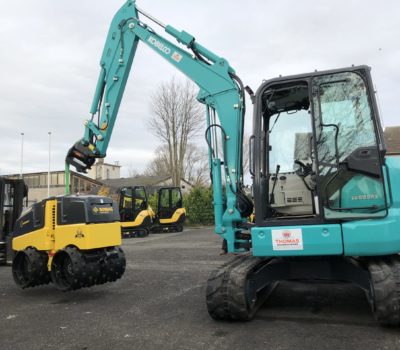

  • SK55SRX-6-10

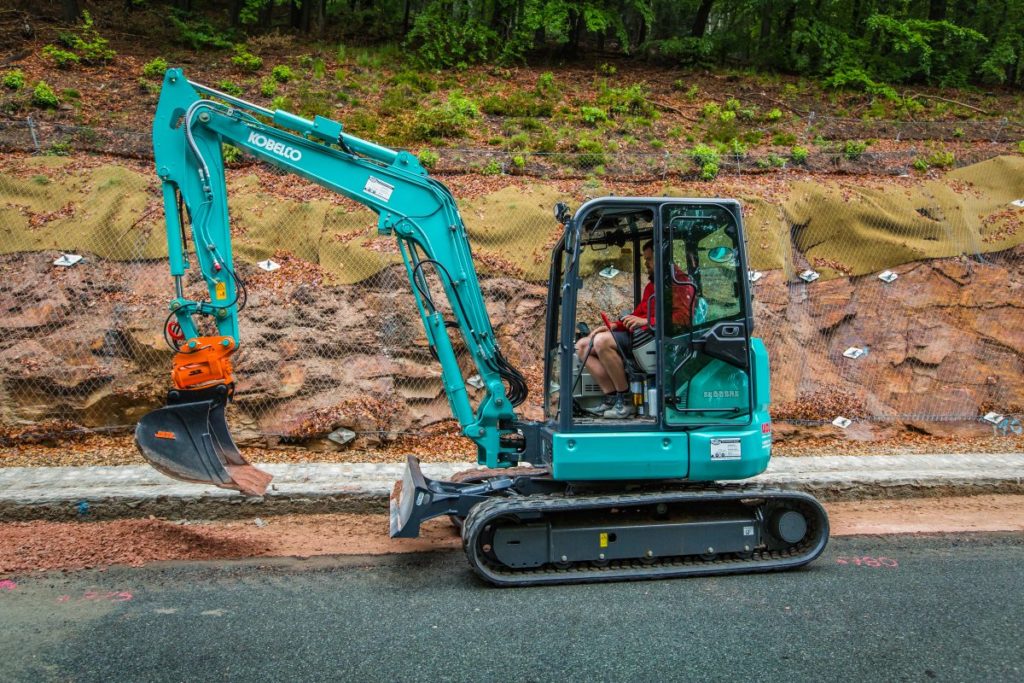

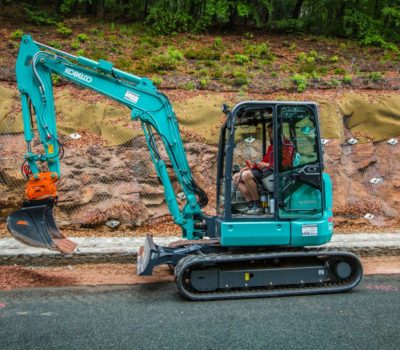

  • SK55SRX-6-12

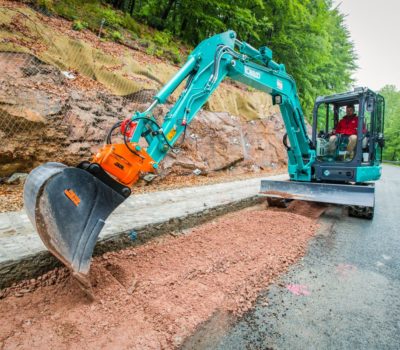

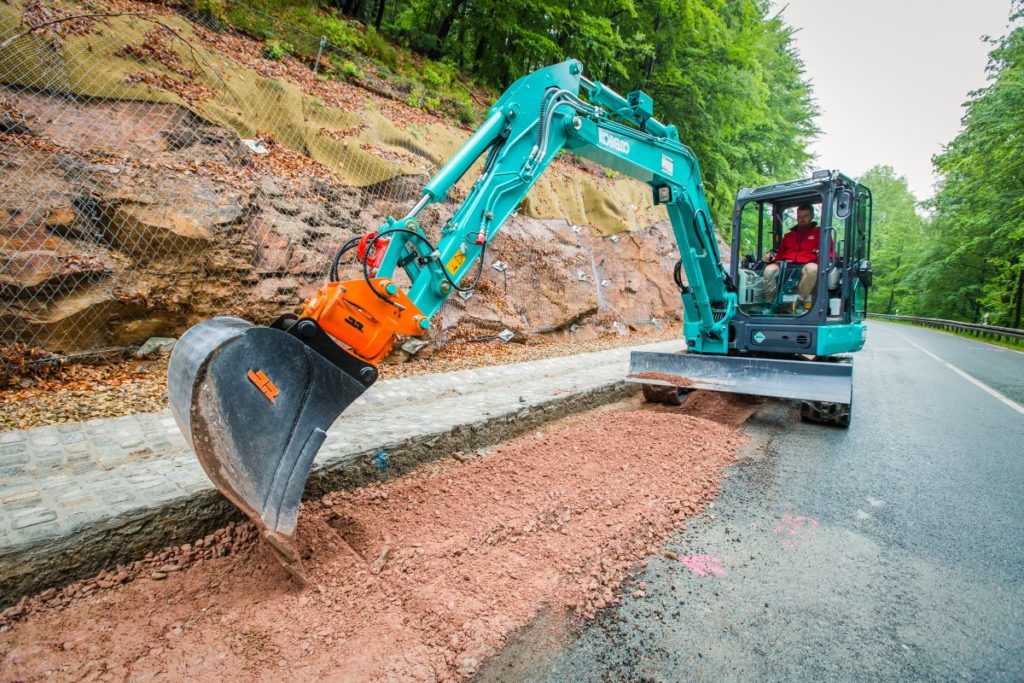

  • SK55SRX-6-13

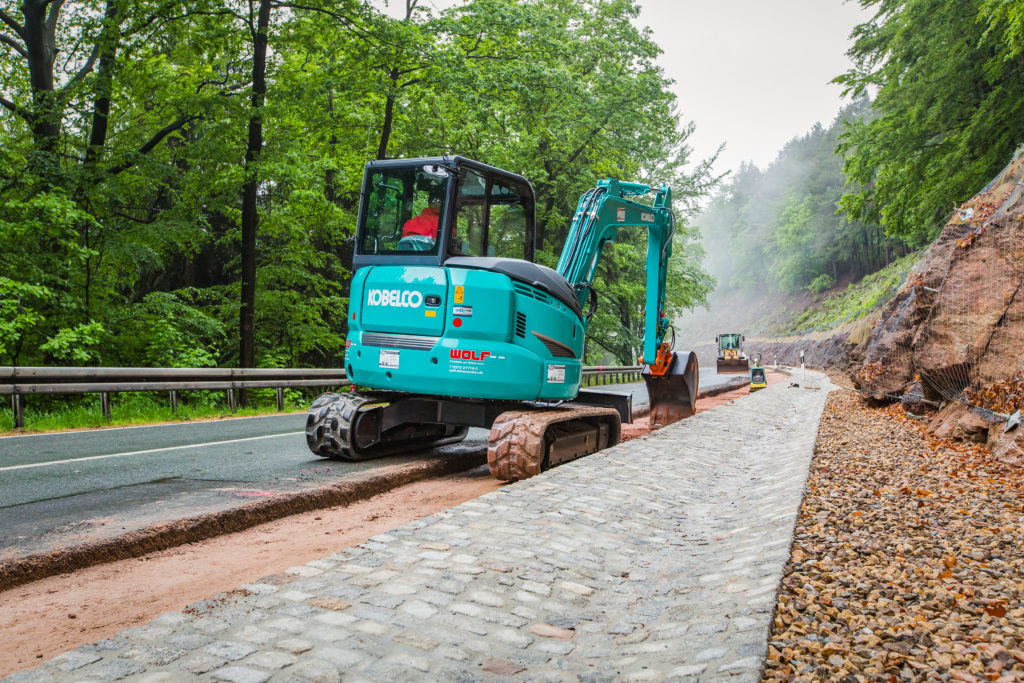

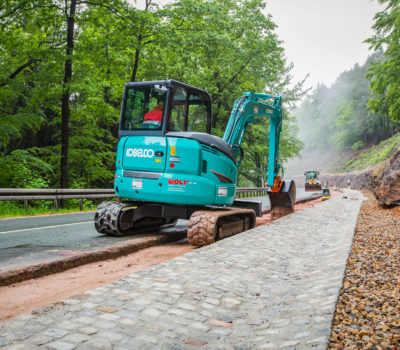

  • SK55SRX-6-14

Product specifications

ENGINE
Model: YANMAR 4TNV88-B
Type: Water cooled, 4-cylce, 4-cylinder, direct injection, diesel engine
Fuel tank: 75.0 L
Displacement: 2.189 L
Rated power output: 28.3kW / 2,400rpm (ISO9249)

HYDRAULIC SYSTEM
Type: Two variable displacement pumps + one gear pump
Max. discharge flow: 2x 49.9, 1x 33.8 L/min
Relief Valve Setting: 23.0 MPa
Hydraulic Oil tank: 27.9 L (57.7 system)

DIGGING FORCE
Bucket digging force (Standard): 35.2kN
Arm crowding force (Standard): 24.6kN
Standard label: 1.69 m

TRAVEL FORCE
Travel motors: 2 x axial-piston, two-step motors
Parking brakes: Oil disc brake per motor
Travel speed: 4,0 / 2,3 km/h
Swing speed: 8.8 rpm
Drawbar pulling force: 54.9kN
Gradeability: 58% (30degree)
