Mini excavator SK35SR-6E

SK35SR-6E

Mini excavators

Product specifications SK35SR-6E

Engine rated power:
17.1kW / 2,400rpm (ISO9249)

Bucket capacity:
0.11 m3

Image gallery

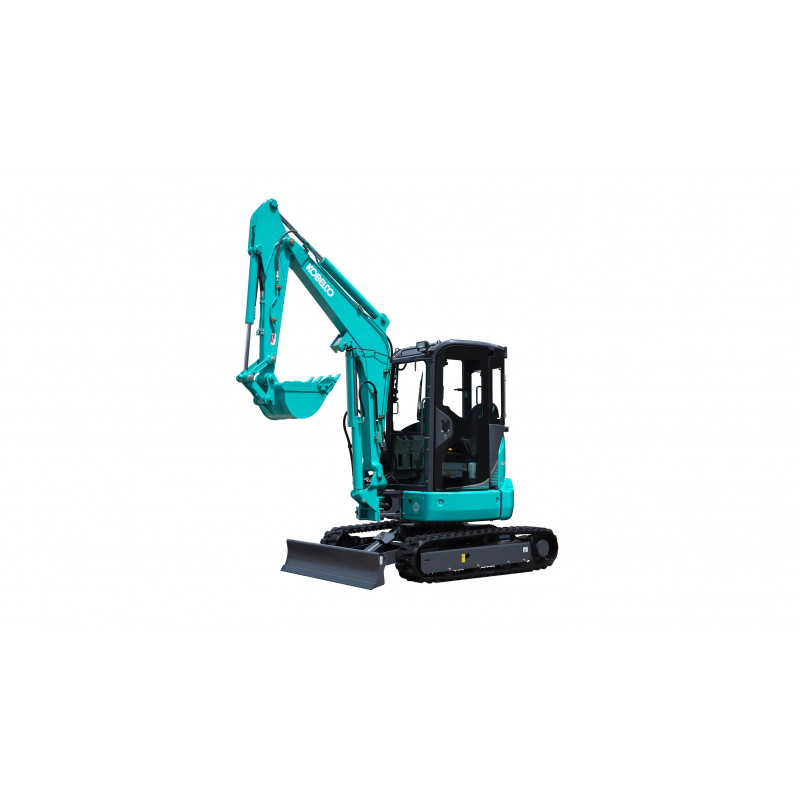

  • SK35SR-6E-7

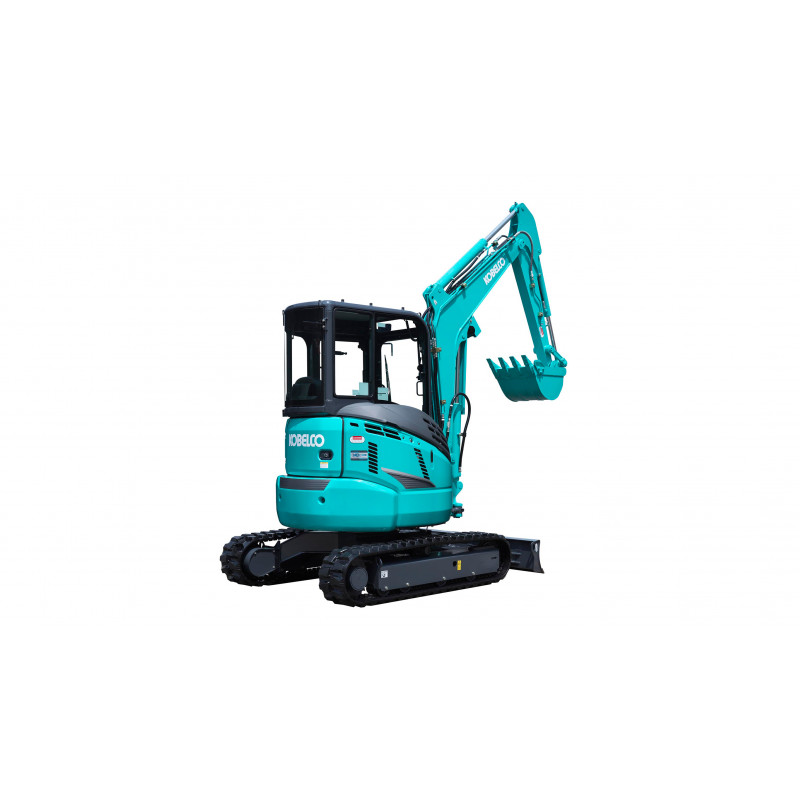

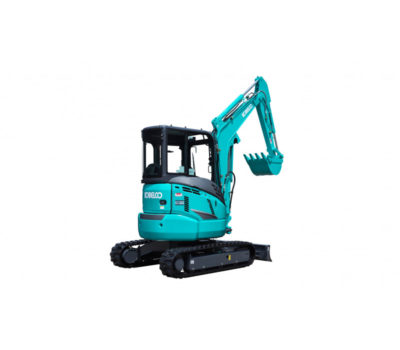

  • SK35SR-6E-1
  • SK35SR-6E-2

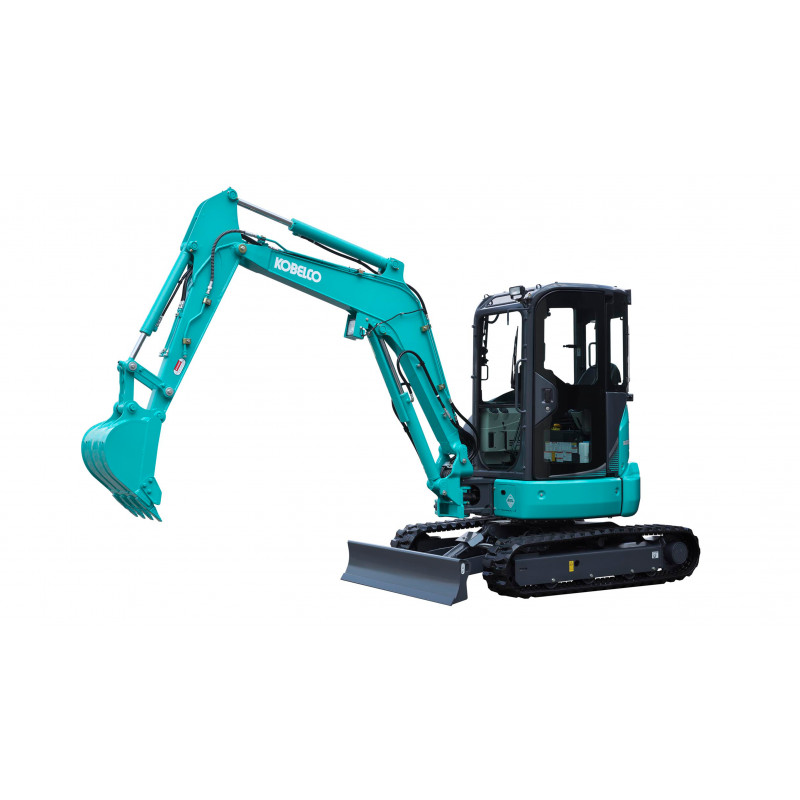

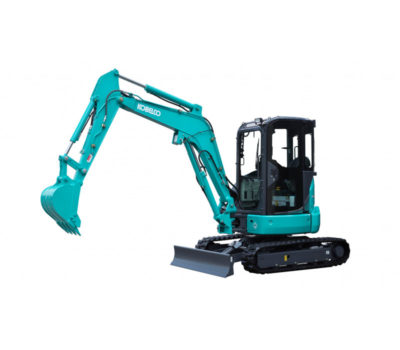

  • SK35SR-6E-6
  • SK35SR-6E-5

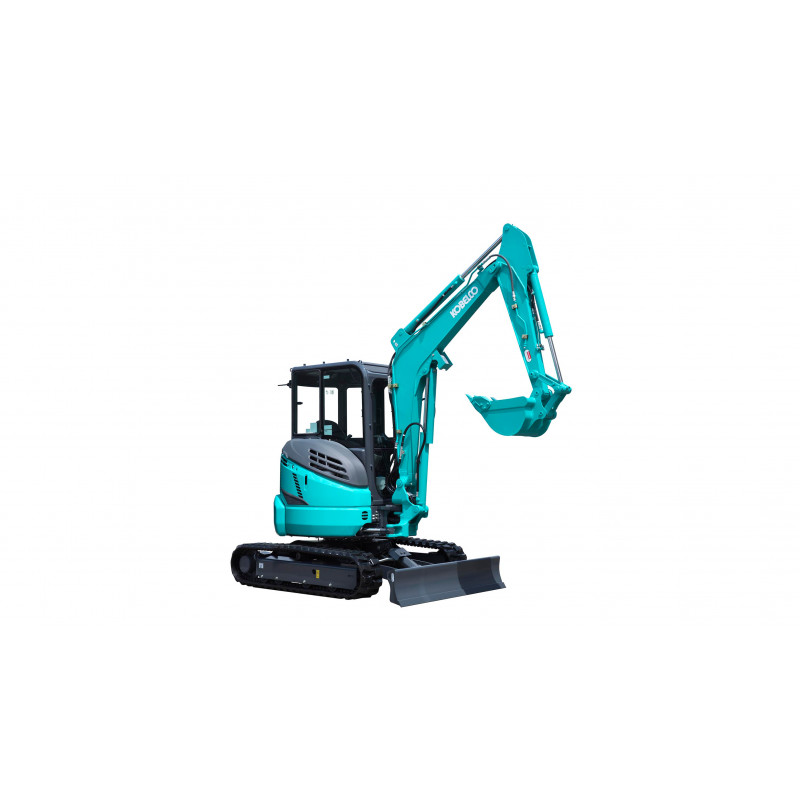

  • SK35SR-6E-4
  • SK35SR-6E-3

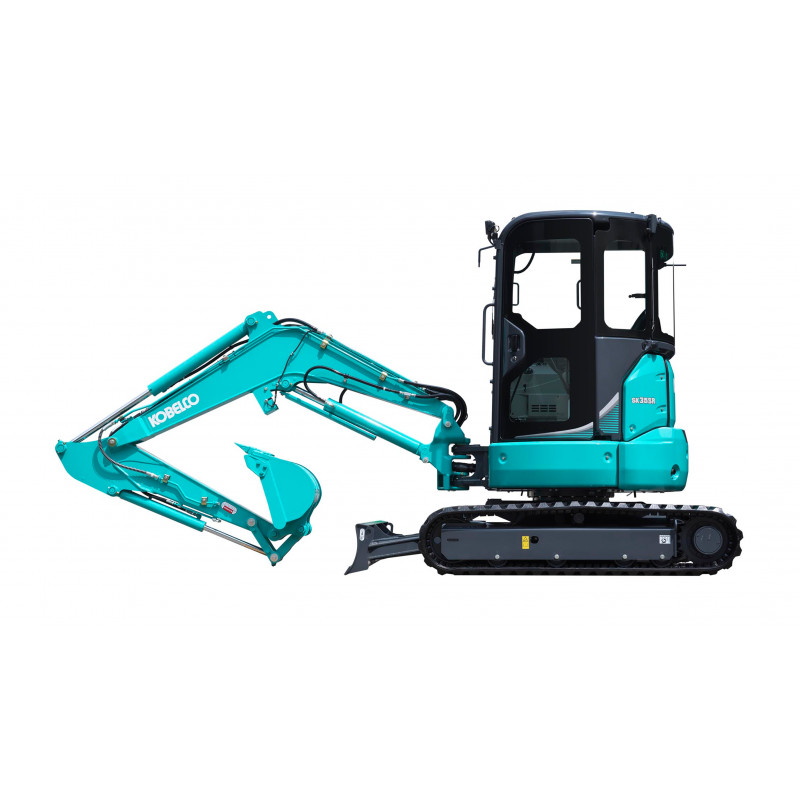

  • SK35SR-6E-8

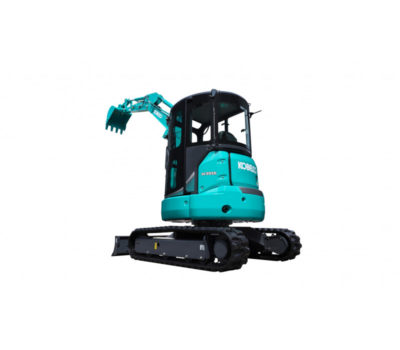

  • SK35SR-6E-9

Product specifications

ENGINE
Model: YANMAR 3TNV82A-B
Type: Water cooled, 4-cycle, 3-cylinder, direct injection, diesel engine
Fuel tank: 42.0 L
Displacement: 1.331 L
Rated power output: 17.1kW / 2,400rpm (ISO9249)

HYDRAULIC SYSTEM
Type: Two variable displacement pumps + One gear pump
Max. discharge flow: 2x 38.4, 1x 19.2 L/min
Relief Valve Setting: 23.0 MPa
Swing motor: Axial piston motor
Hydraulic Oil tank: 20.4 L (44.8 system)

DIGGING FORCE
Bucket digging force (Standard): 27.8kN
Arm crowding force (Standard): 22.4kN
Standard label: 1.37 m

TRAVEL FORCE
Travel speed: 4.4/2.5 km/h
Swing speed: 8.4 rpm
Drawbar pulling force: 38.1 kN
Gradeability: 58%
