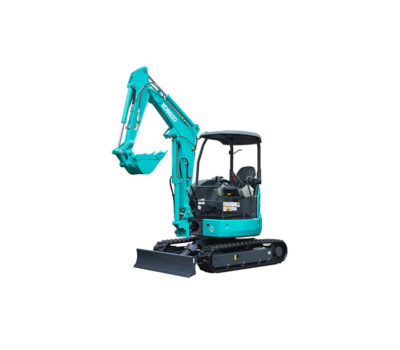

Mini excavator SK28SR-6E

SK28SR-6E

Mini excavators

Product specifications SK28SR-6E

Engine rated power:
17.1kW / 2,400rpm (ISO9249)

Bucket capacity:
0.08m³

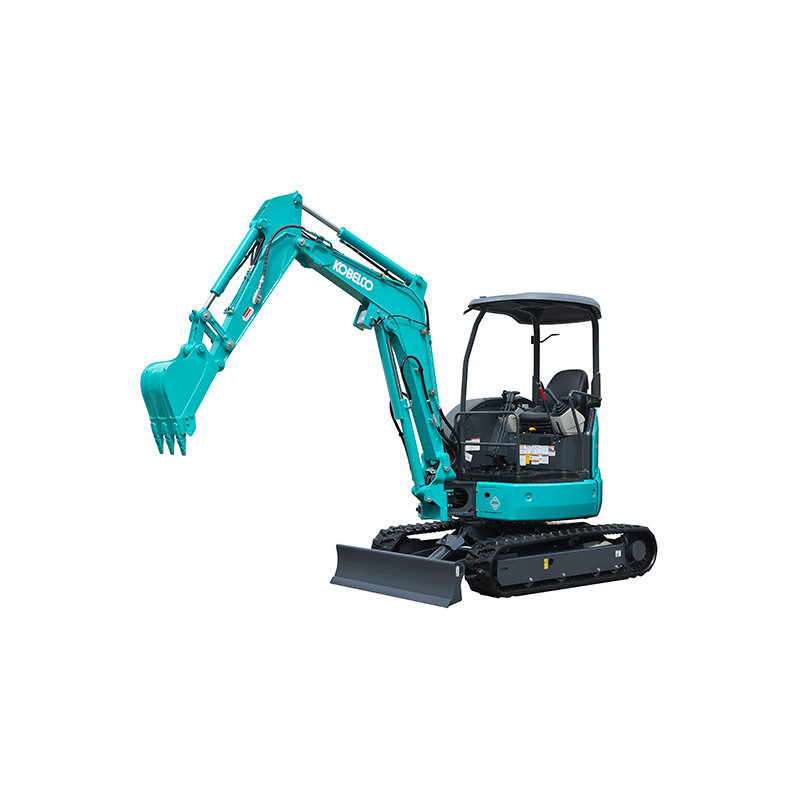

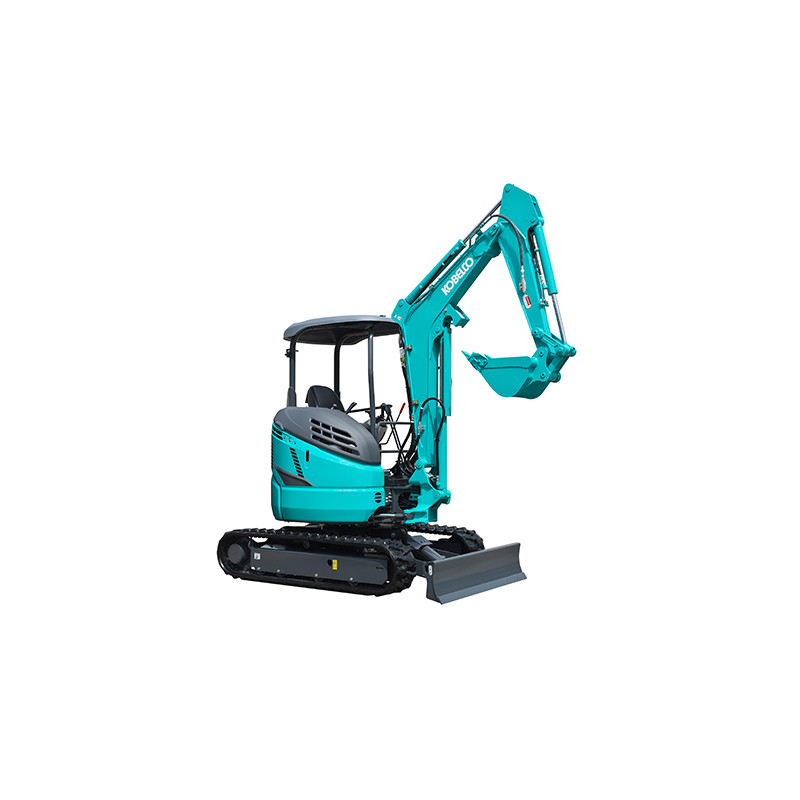

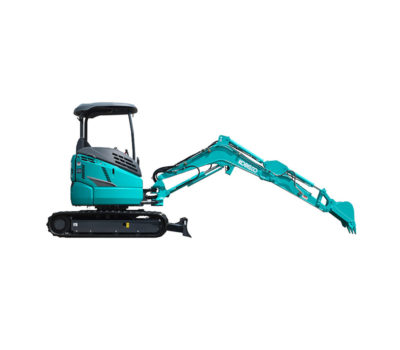

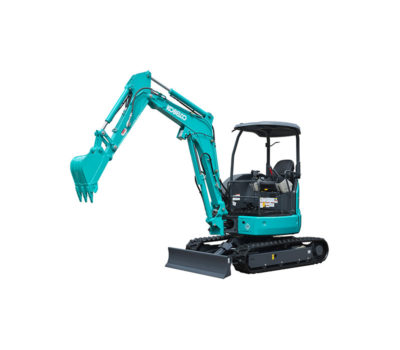

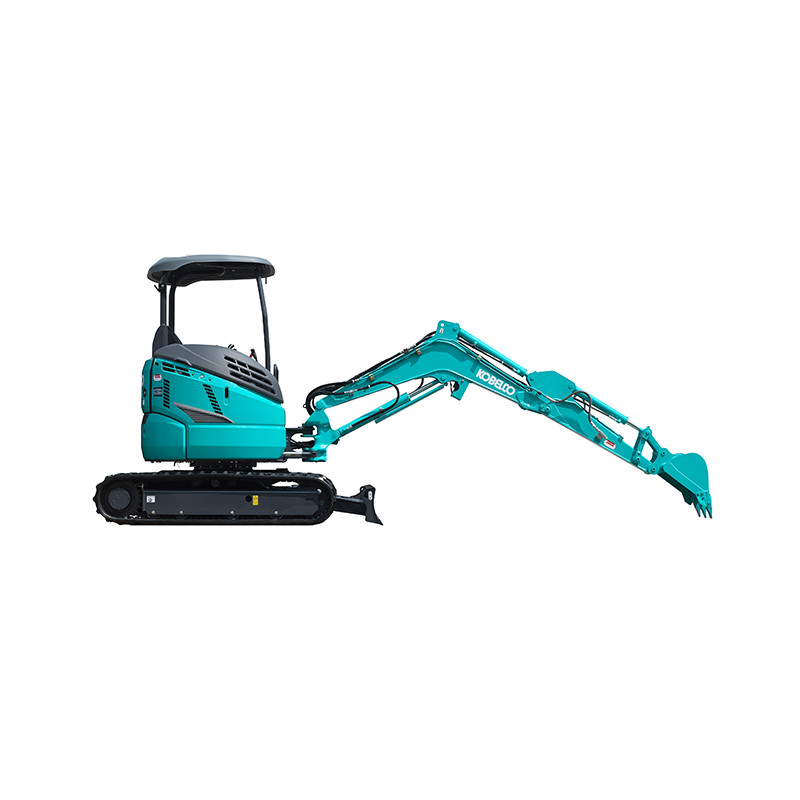

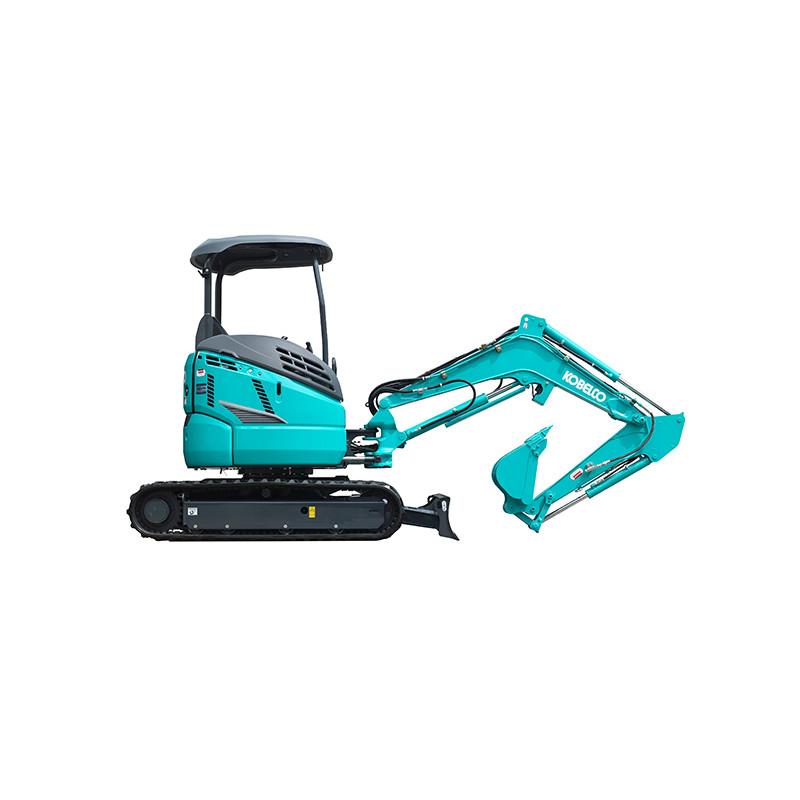

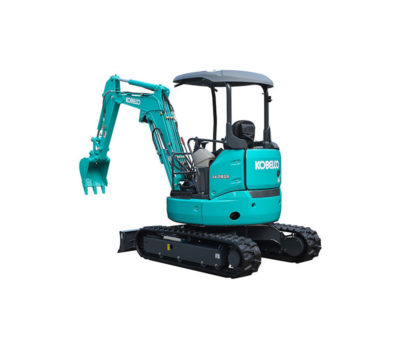

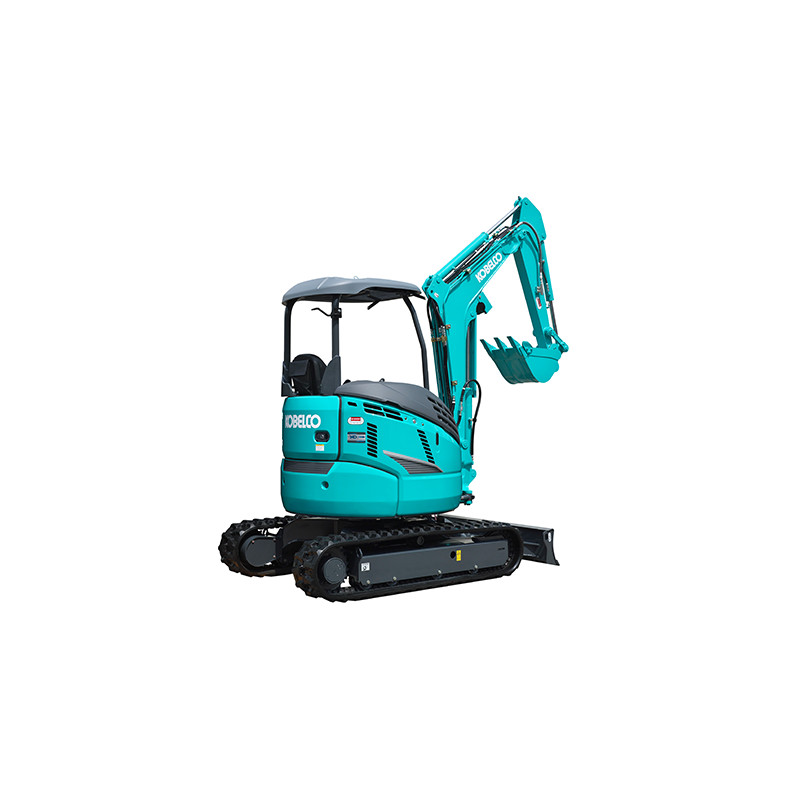

Image gallery

Product specifications

ENGINE
Model: YANMAR 3TNV82A-B
Type: Water cooled, 4-cycle, 3-cylinder, direct injection, diesel engine
Fuel tank: 42.0 L
Displacement: 1.331 L
Rated power output: 17.1kW / 2,400rpm (ISO9249)

HYDRAULIC SYSTEM
Type: Two variable displacement pumps + One gear pump
Max. discharge flow: 2x 28.8, 1x 16.1 L/min
Relief Valve Setting: 23.0 MPa
Swing motor: Axial piston motor
Hydraulic Oil tank: 20.4 L (41.1 system)

DIGGING FORCE
Bucket digging force (Standard): 27.7kN
Arm crowding force (Standard): 19.1kN
Standard label: 1.32 m

TRAVEL FORCE
Travel speed: 3.8/2.1 km/h
Swing speed: 8.4 rpm
Drawbar pulling force: 34.8kN
Gradeability: 58%
