Conventional models SK260(N)LC-10

SK260(N)LC-10

Conventional models

Product specifications SK260(N)LC-10

Operating weight:
SK260LC-10: 26,000 kg

Engine rated power:
138 kW/2,100 min-1 (ISO14396)

Bucket capacity:
1.0 m3

Image gallery

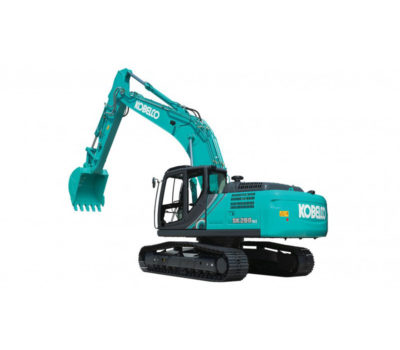

  • SK260(N)LC-10-1

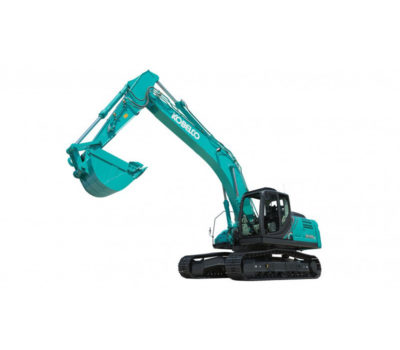

  • SK260(N)LC-10-2
  • SK260(N)LC-10-3
  • SK260(N)LC-10-4

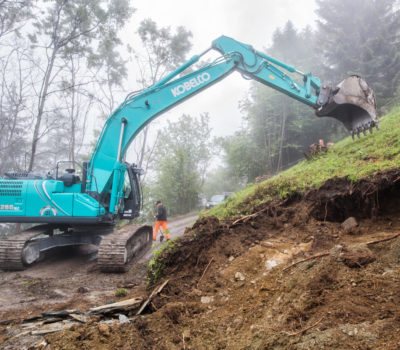

  • flitsendfotografie, montfoort, vrouwenhuisstraat 26, studio, fotostudio, fotograaf, bedrijfsfotografie, zakelijkprofielfoto, profielfoto, flitsendinbedrijf, marina kemp, kobelco, kemp,
  • SK260(N)LC-10

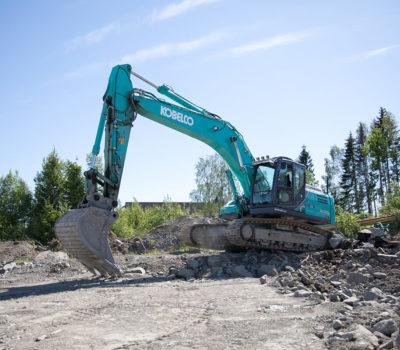

  • SK260(N)LC-9
  • SK260(N)LC-6

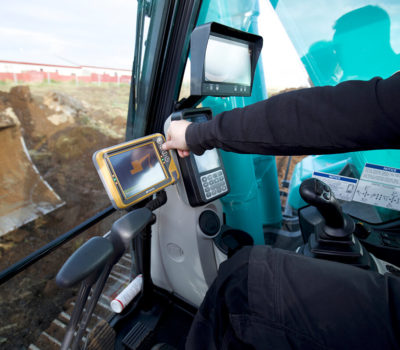

  • SK260(N)LC-7
  • SK260(N)LC-8
  • SK260(N)LC-11

Product specifications

ENGINE
Model: HINO J05EUN-KSSD
Type: Direct injection diesel with intercooler
Fuel tank: 403 L
Displacement: 5123 L
Rated power output: 138 kW/2,100 min-1 (ISO14396)

HYDRAULIC SYSTEM
Type: Double variable displacement axial-piston + 1 gear
Max. discharge flow: 2×245 L/min,1×21 L/min
Relief Valve Setting: 34.3 (37.8*) MPa
Swing motor: Axial piston motor
Hydraulic Oil tank: 165 L: tank level (273: system)

LONG REACH
Operating weight: 27,800 kg
Engine Rated Power: 138 kW / 2,100 min-1 (ISO14396)
Bucket Capacity: 0.40 m3

DIGGING FORCE
Bucket digging force (Standard): 170 187*
Arm crowding force (Standard): 122 134*
Standard label: 2.98 m
Power boost engaged: UNIT = kN * Power Boost engaged

TRAVEL FORCE
Travel motors: 2x axial-piston motor
Travel speed: 5.8/3.6 km/h
Drawbar pulling force: 245 kN
Gradeability: 70% {35 degrees}

2 PC BOOM
Operating weight: 26,600 (26,500)
Engine Rated Power: 138 / 2,100
