Conventional models SK240SN-10E

SK240SN-10E

Conventional models

Product specifications SK240SN-10E

Operating weight:
23,300 kg

Engine rated power:
124 kW / 2,000 min-1

Bucket capacity:
0.70 – 0.80 m3

Image gallery

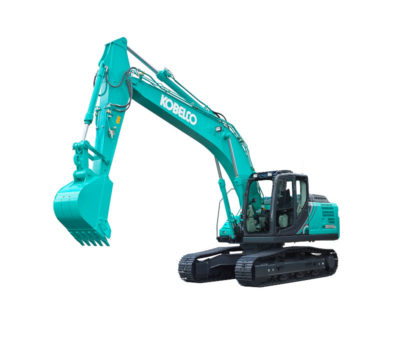

  • SK240SN-10E-1
  • SK240SN-10E-2
  • SK240SN-10E-3
  • SK240SN-10E-4
  • SK240SN-10E-5
  • SK240SN-10E-6

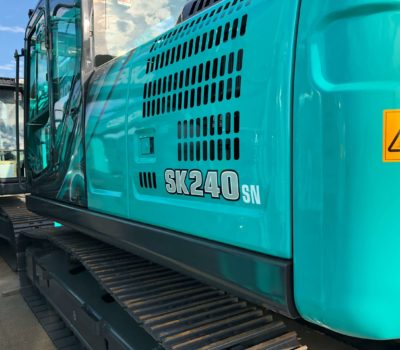

  • SK240SN-10E-7

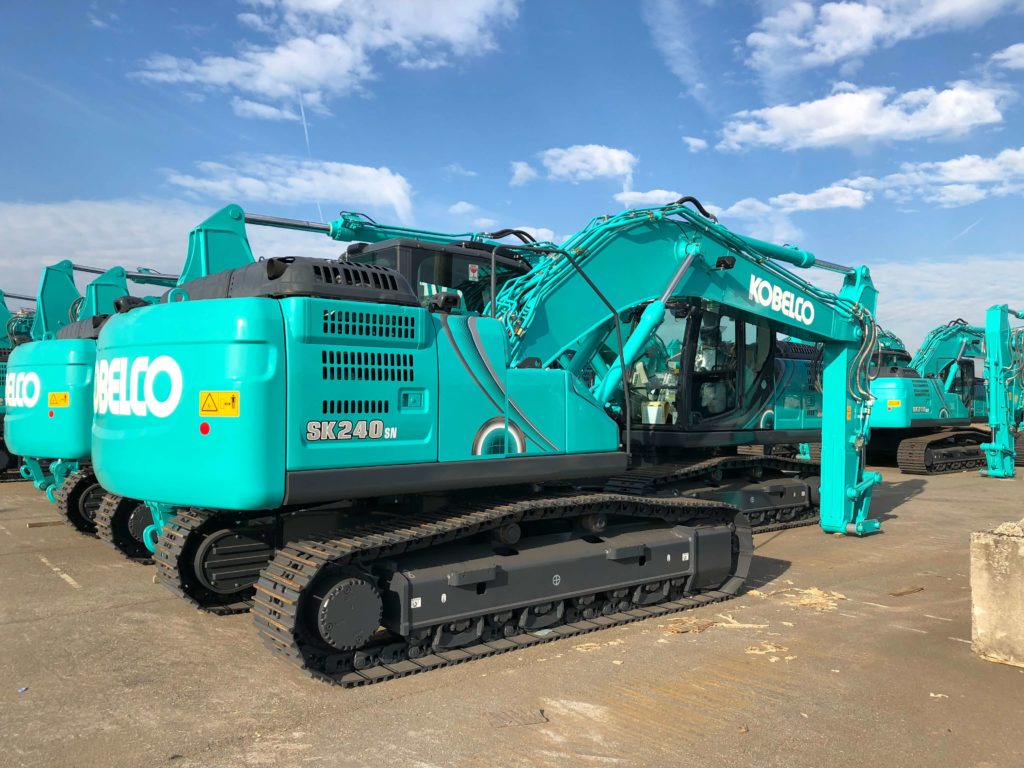

  • SK240SN-10E-8

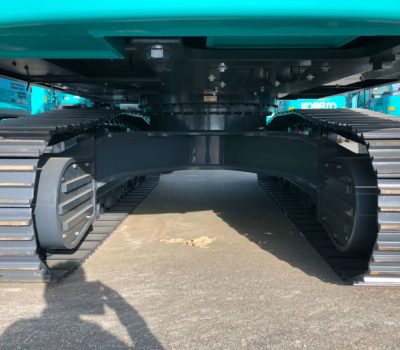

  • SK240SN-10E-9

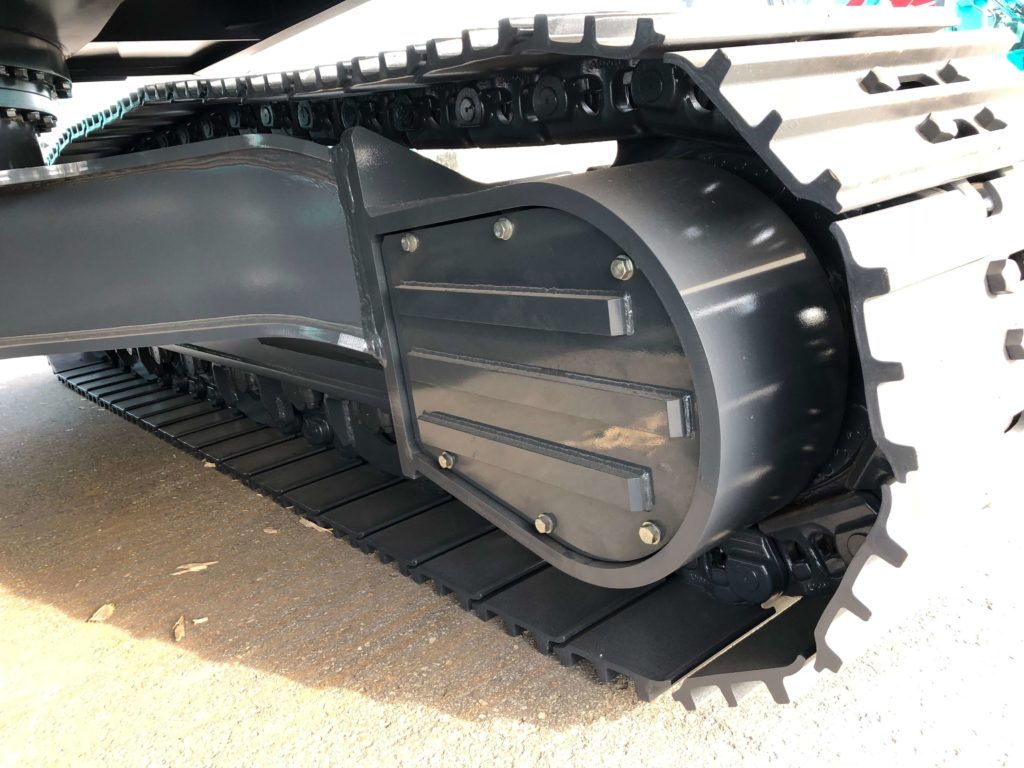

  • SK240SN-10E-10

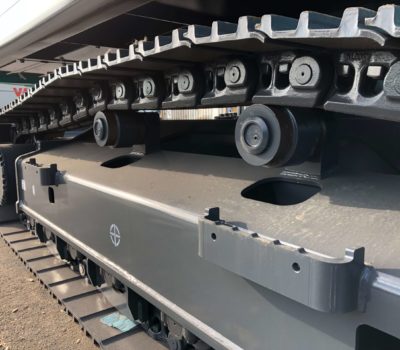

  • SK240SN-10E-11

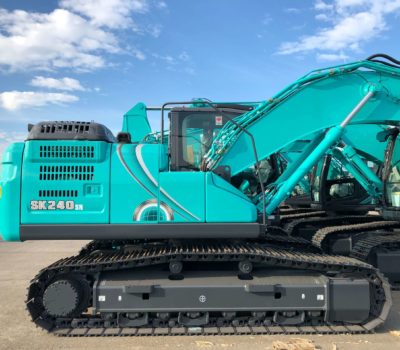

  • SK240SN-10E-12

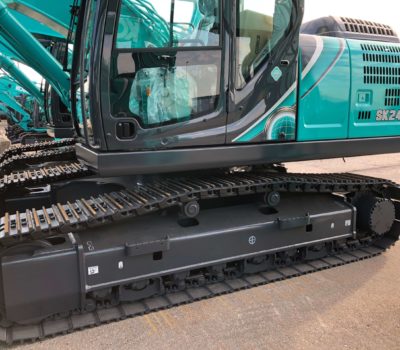

  • SK240SN-10E-13

Product specifications

ENGINE
Model: J05EUM-KSSS
Type: Direct injection, water-cooled, 4-cycle diesel engine with turbocharger, intercooler
Displacement: 5.123 L
Rated power output: 124 kW / 2,000 min-1

HYDRAULIC SYSTEM
Type: Two variable displacement pumps + one gear pump
Max. discharge flow: 2 x 220 L /min, 1 x 20 L/min
Boom, arm and bucket: 34.3 MPa {350 kgf/cm2}

2 PC BOOM
Operating weight: 24,300kg
Engine Rated Power: 124kW/2000min-1(ISO14396)
Bucket Capacity: 0.7-0.8m3
Highlights

DIGGING FORCE
Bucket digging force (Short): 143 157*
Bucket digging force (Standard): 143 157*
Arm crowding force (Short): 121 133*
Arm crowding force (Standard): 102 112*

TRAVEL FORCE
Travel motors: 2 x axial-piston, two-step motors
Travel brakes: Hydraulic brake per motor
Parking brakes: Oil disc brake per motor
Travel shoes: 47 each side
Travel speed: 6.0/3.6 km/h
Drawbar pulling force: 227 kN (ISO 7464)
Gradeability: 70 % {35°}
