SK180(N)LC-10E
Conventional models
Conventional models SK180(N)LC-10E
Product specifications SK180(N)LC-10E
Operating weight:
SK180LC-10: 19,600 kg – 20,500 kg
Engine rated power:
100 kW / 2,000 min-1 (ISO 14396)
Bucket capacity:
0.63 m3

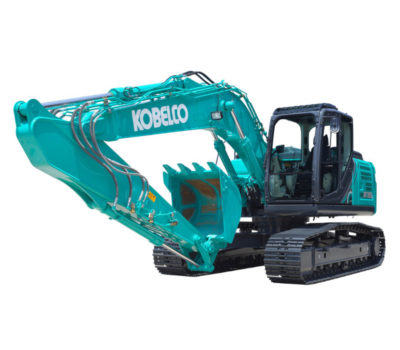

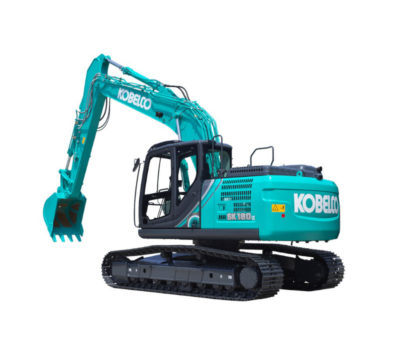

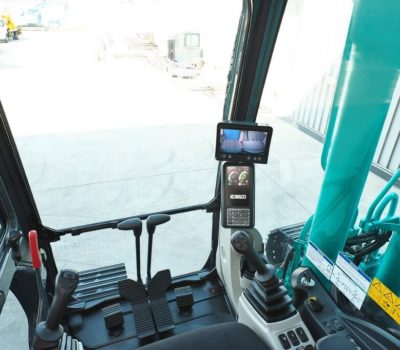

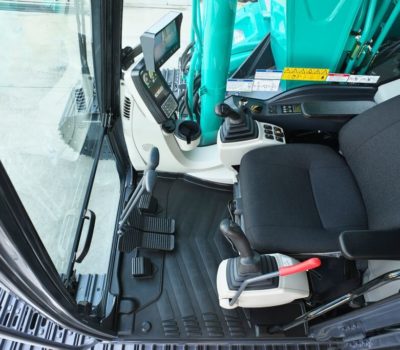

Image gallery
Product specifications
ENGINE
Model: HINO J05EUM-KSST
Type: Direct injection, water-cooled, 4-cycle, 4-cylinder diesel engine with intercooler turbo-charger (Stage IV-compliant engine)
Fuel tank: 280 L
Displacement: 5.123 L
Rated power output: 100 kW / 2,000 min-1 (ISO 14396)
HYDRAULIC SYSTEM
Type: Two variable displacement pumps + One gear pump
Max. discharge flow: 160 x 2 L/min, 20 x 1 L/min
Swing motor: Axial piston motor
Hydraulic Oil tank: 122 L tank oil level, 200 L hydraulic system
Boom, arm and bucket: 34.3 MPa
Power Boost: 37.8 MPa
Travel circuit: 34.3 MPa
Swing circuit 28.0 MPa
Control circuit: 5.0 MPa
Pilot control pump: Gear type
Main control valve: 8-spool
Oil cooler: Air cooled type
DIGGING FORCE
Bucket digging force (Standard): 114 126*
Bucket digging force (Long): 114 126*
Arm crowding force (Standard): 82.3 90.6*
Arm crowding force (Long): 71.7 78.8*
Standard label: 2.6 m
Long label: 3.1 m
Power boost engaged: Unit: kN / *Power Boost engaged
TRAVEL FORCE
Travel motors: 2 x axial piston , two speed motors
Parking brakes: Oil disc brake per motors
Travel shoes: 49 each side (SK180LC), 45 each side (SK180N)
Travel speed: 4.7/2.8 km/h
Swing speed: 12.3 min-1
Drawbar pulling force: 231 kN
Gradeability: 70 % {35 degree}
