Conventional models SK500(V)LC-10

SK500(V)LC-10

Conventional models

Product specifications SK500(V)LC-10

Operating weight:
49,900 kg – 51,900 kg

Engine rated power:
271 kW / 1,850 min-1 (ISO14396)

Bucket capacity:
1.9 m3

Image gallery

  • SK500(V)LC-10-1

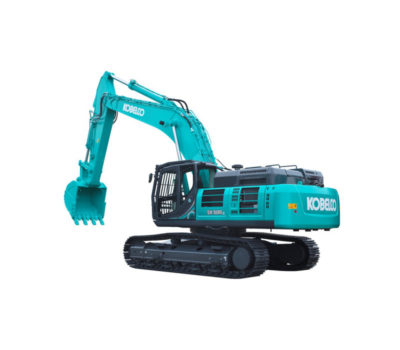

  • SK500(V)LC-10-2

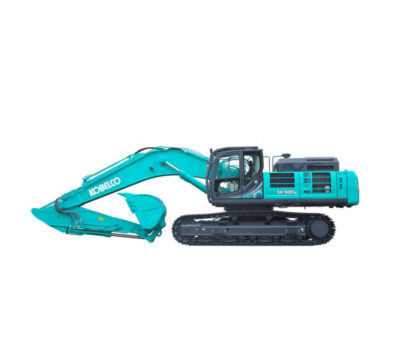

  • SK500(V)LC-10-3
  • SK500(V)LC-10-4
  • SK500(V)LC-10-5

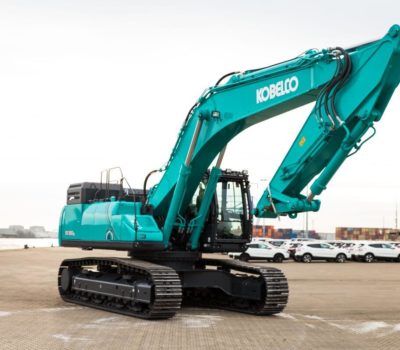

  • SK500(V)LC-10-6

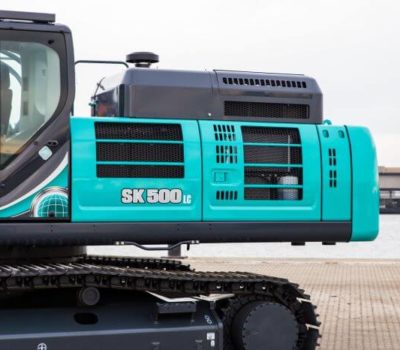

  • SK500(V)LC-10-7

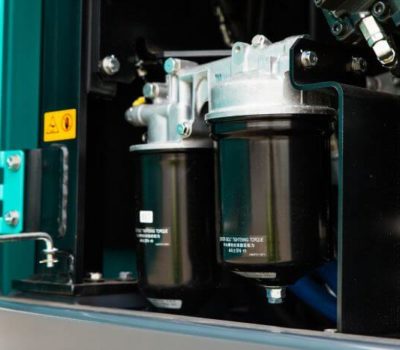

  • SK500(V)LC-10-9
  • SK500(V)LC-10-8

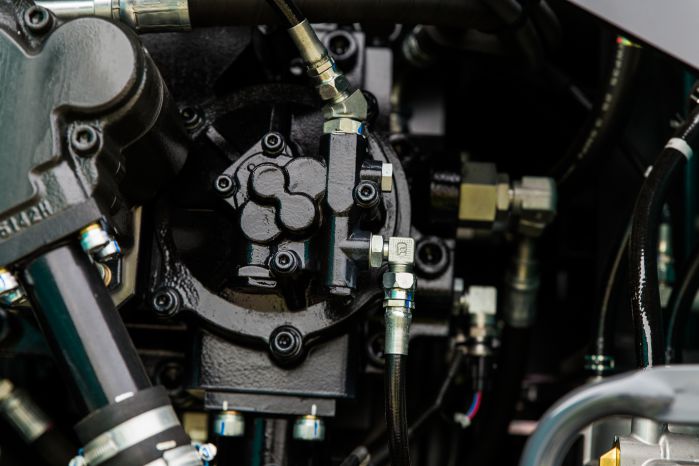

  • SK500(V)LC-10-10

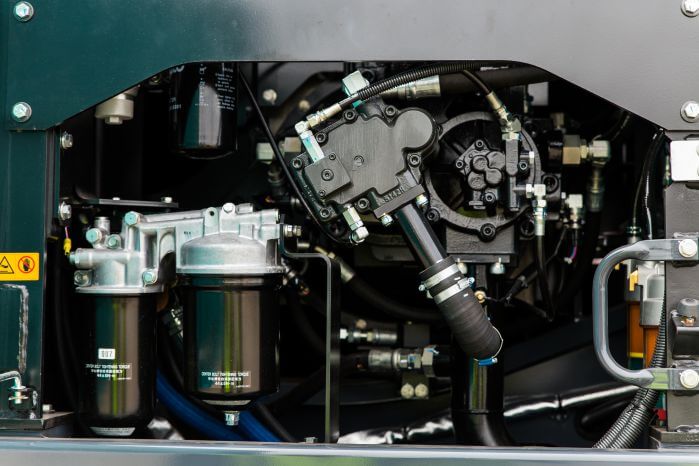

  • SK500(V)LC-10-11

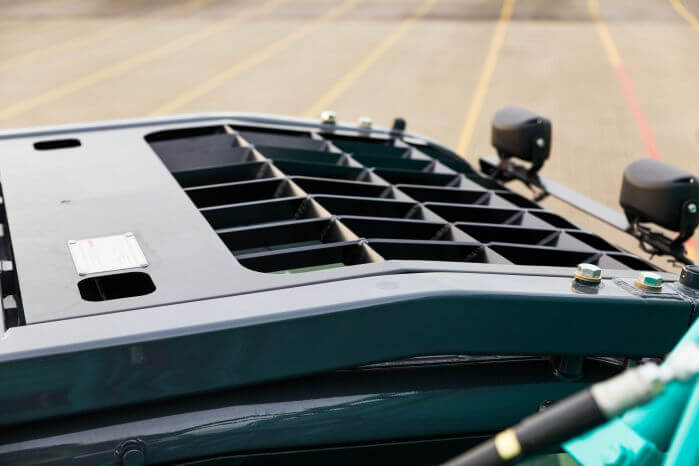

  • SK500(V)LC-10-12

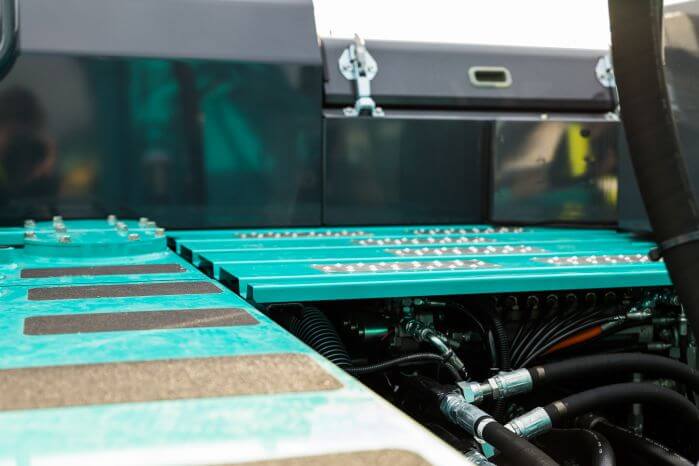

  • SK500(V)LC-10-13

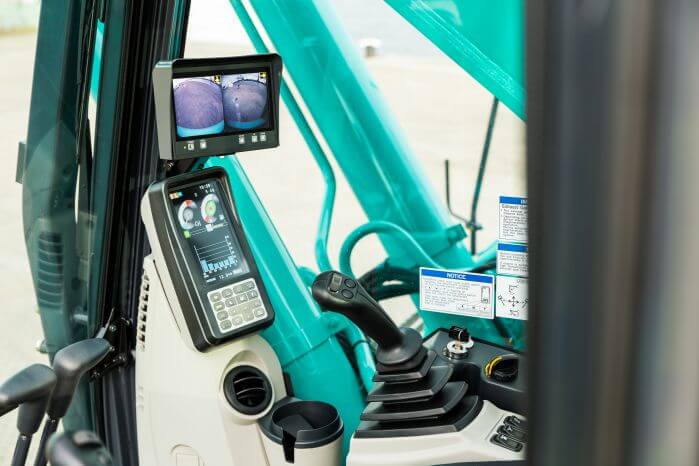

  • SK500(V)LC-10-14

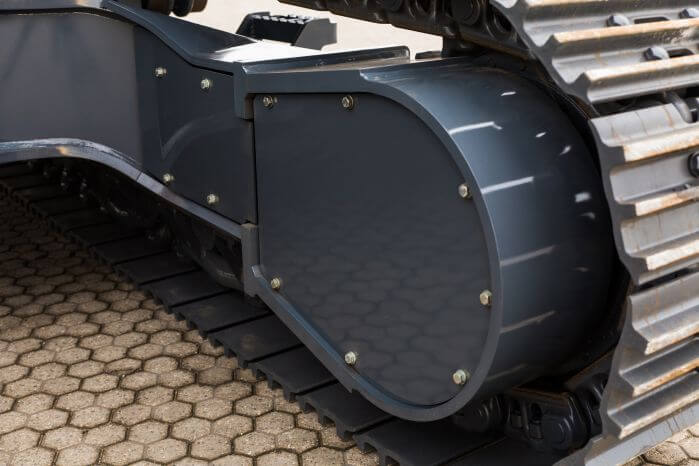

  • SK500(V)LC-10-15

Product specifications

ENGINE
Model: HINO P11C-VN
Type: Direct injection, water -cooled, 4-cycle diesel engine with intercooler turbo-charger (Stage IV-compliant engine)
Fuel tank: 638 L
Displacement: 10.52 L
Rated power output: 271 kW / 1,850 min-1 (ISO14396)

HYDRAULIC SYSTEM
Type: 2 variable displacement pumps + 1 gear pump
Max. discharge flow: 2 x 370 L/min, 1 x 63.5 L/min
Swing motor: Axial piston motor
Hydraulic Oil tank: 370.8 L tank oil level, 631 L hydraulic system
Power Boost: 34.3 Mpa
Travel circuit: 34.3 Mpa
Swing circuit 25.8 Mpa
Control circuit: 5.0 Mpa
Pilot control pump: Gear type
Main control valve: 8-spool
Oil cooler: Air cooled type

2 PC BOOM
Operating weight: 37,600 kg
Engine Rated Power: 201 kW/2,100 min-1 (ISO 9249) – 213 kW/2,100 min-1 (ISO 14396)

DIGGING FORCE
Bucket digging force (Short): 266 291*
Bucket digging force (Standard): 267 292*
Bucket digging force (Long): 289 264*
Arm crowding force (Short): 223 244*
Arm crowding force (Standard): 203 222*
Arm crowding force (Long): 198 181*
Short label: 3.0 m
Standard label: 3.45 m
Long label: 4.04 m
Power boost engaged: UNIT = kN / * Power Boost engaged

TRAVEL FORCE
Travel motors: 2 x axial-piston, two-step motors
Travel brakes: Hydraulic brake per motor
Parking brakes: Oil disk brake per motor
Travel shoes: 50 each side
Travel speed: 5.4 / 3.4 km/h
Swing speed: 7.6 min-1
Drawbar pulling force: 415 kN
Gradeability: 70% (35 degrees)
