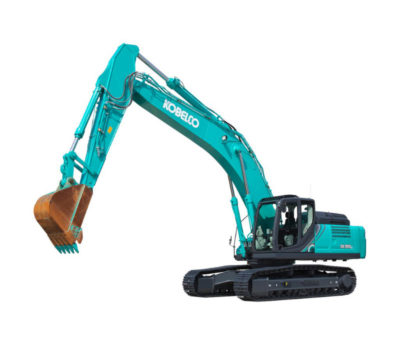

Conventional models SK350(N)LC-10

SK350(N)LC-10

Conventional models

Product specifications SK350(N)LC-10

Operating weight:
SK350LC-10: 36,400 kg – 38,000 kg

Engine rated power:
213 kW / 2,100 min-1 (ISO14396)

Bucket capacity:
1.20 m3 – 1.60 m3

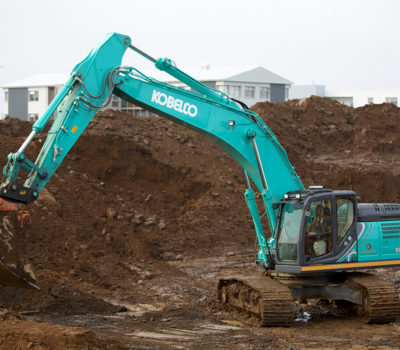

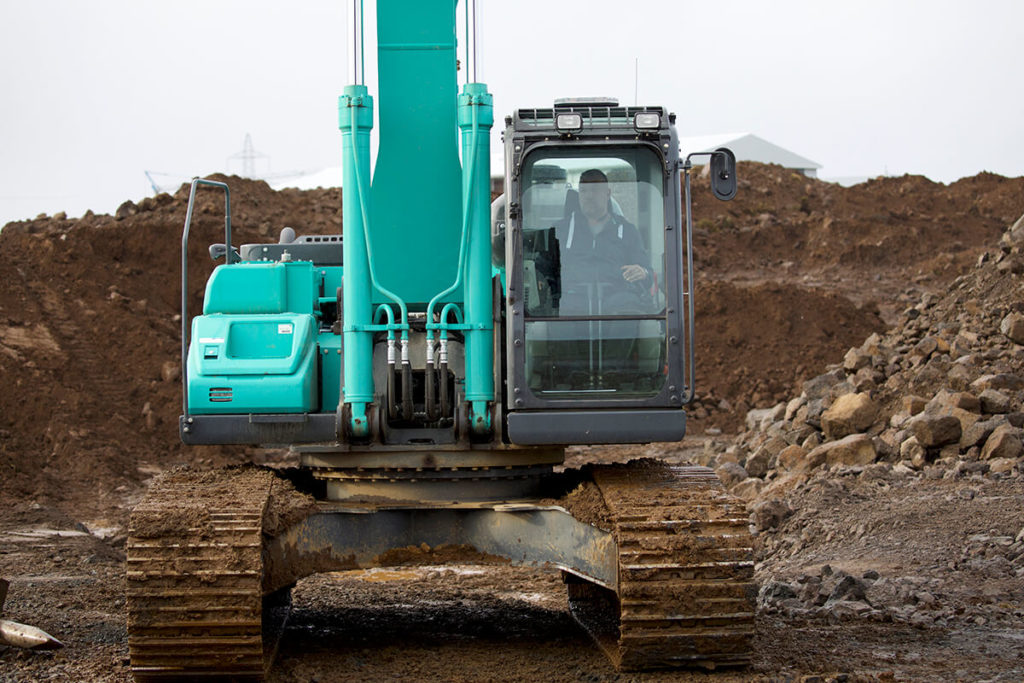

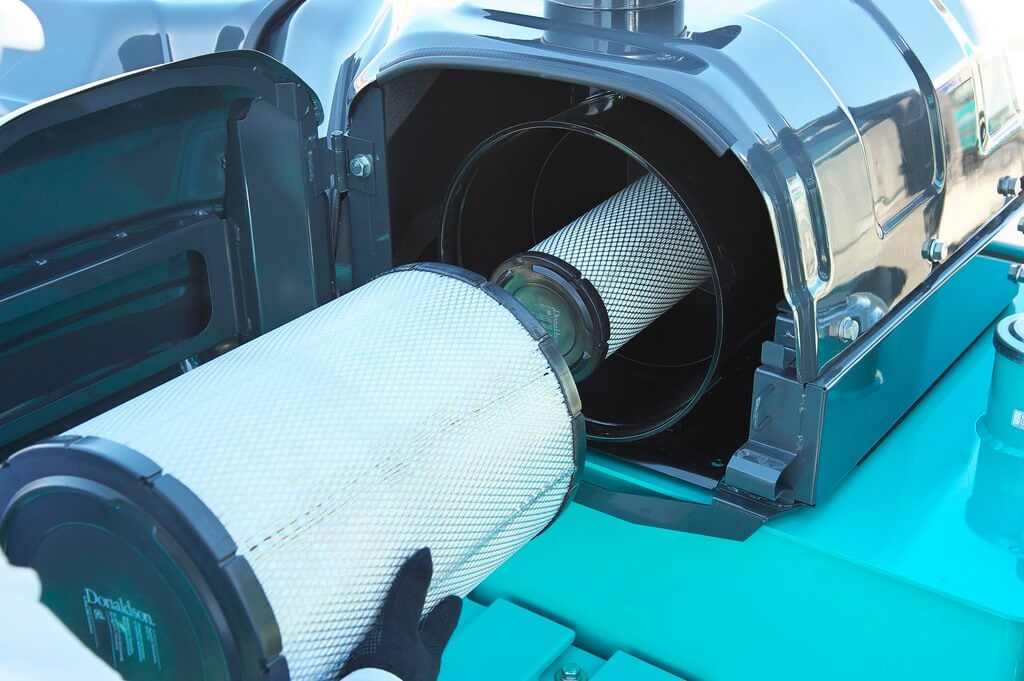

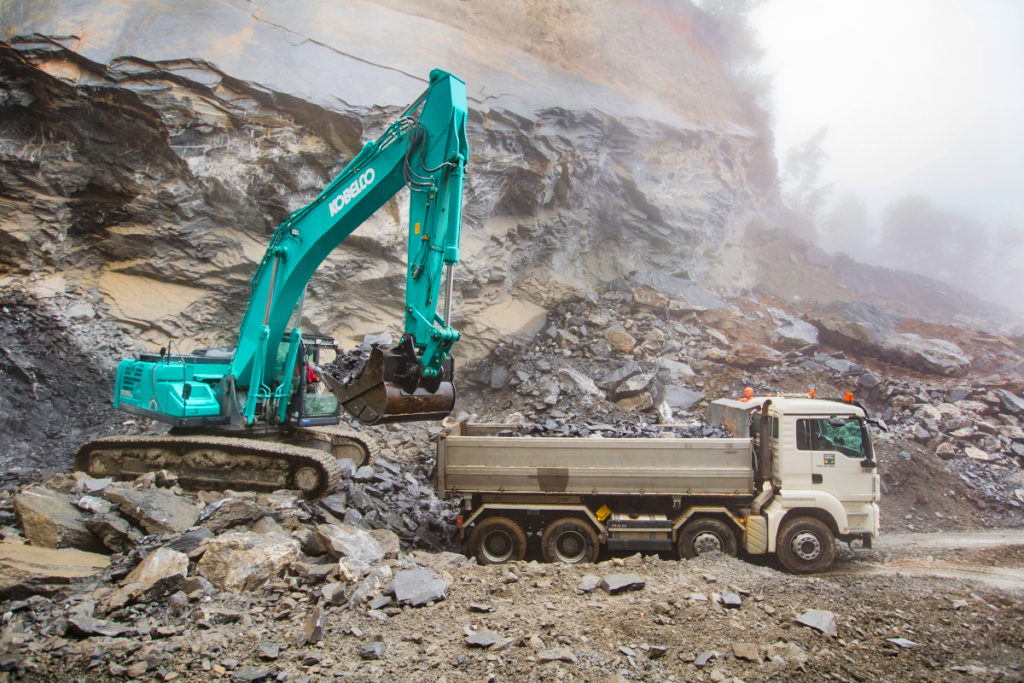

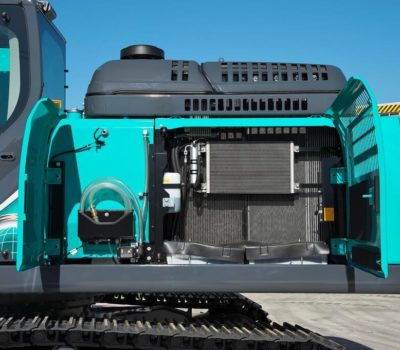

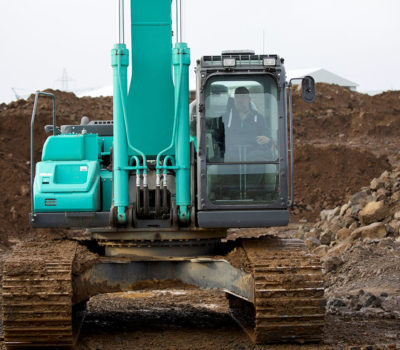

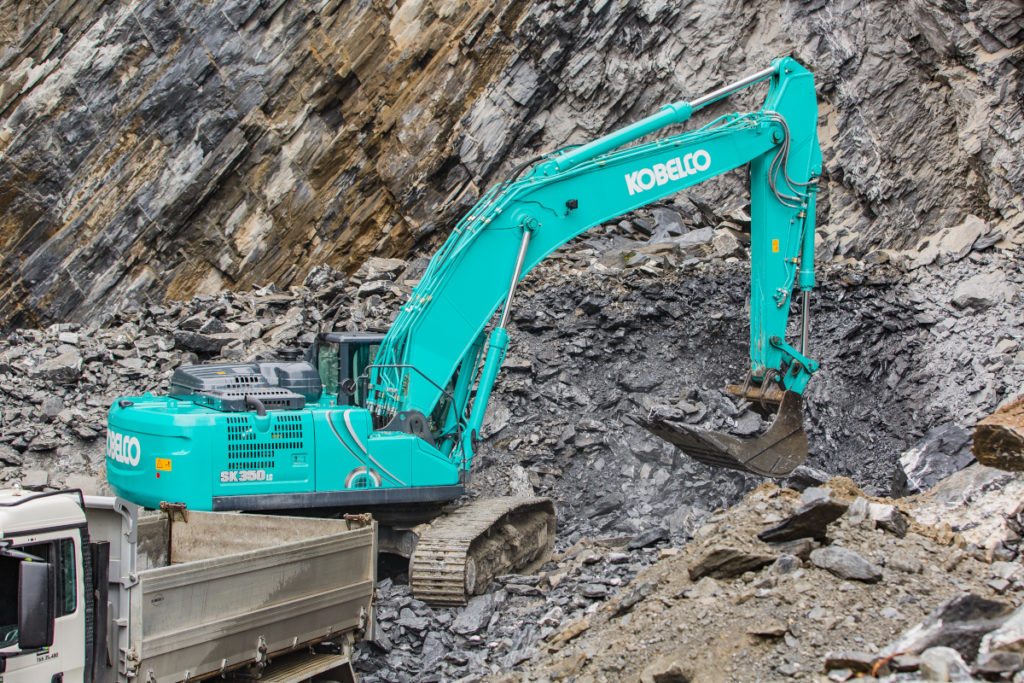

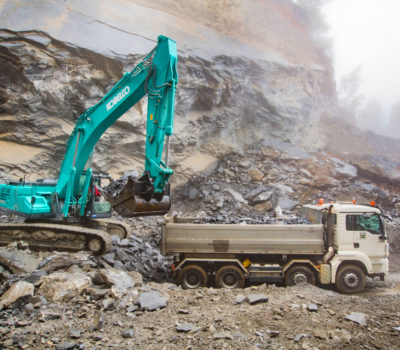

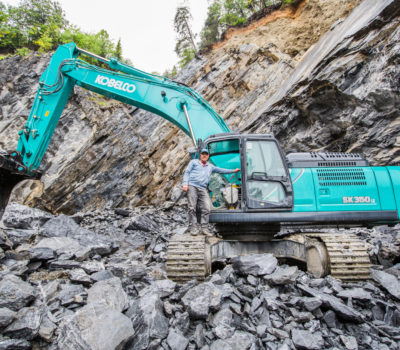

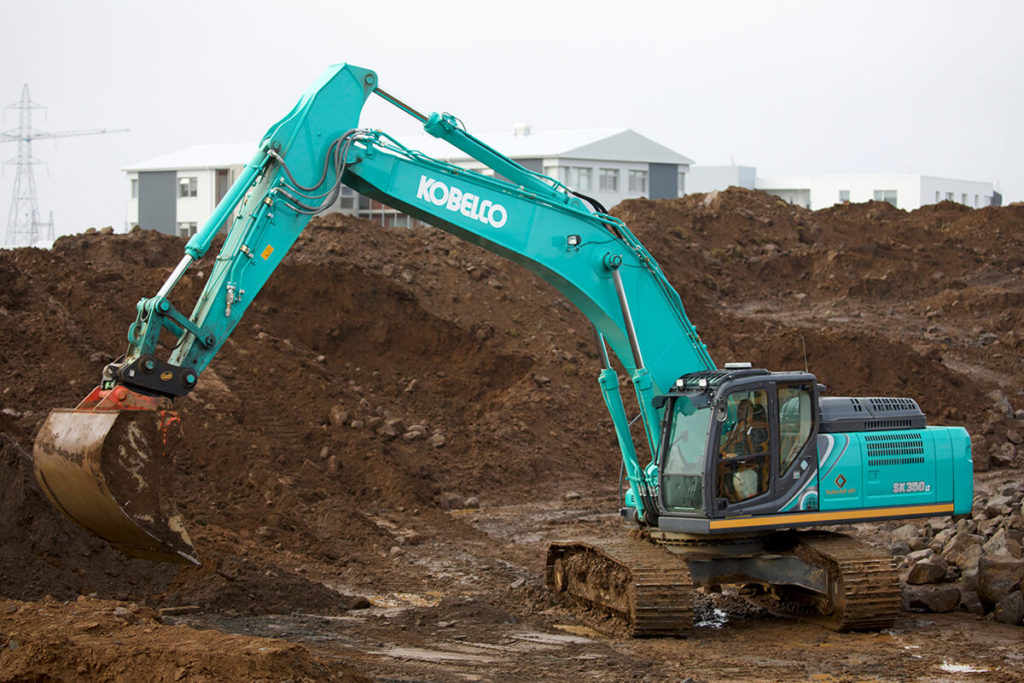

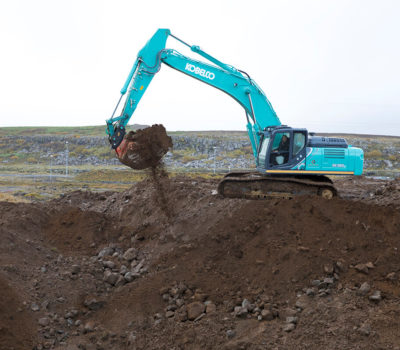

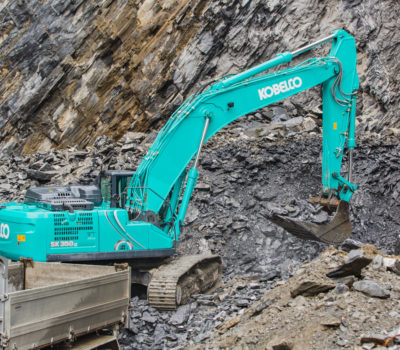

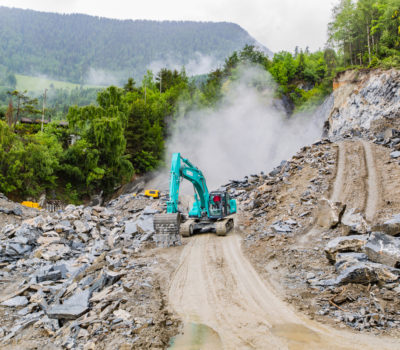

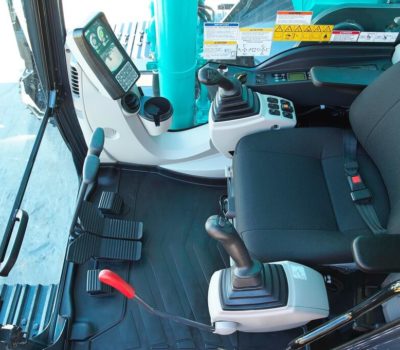

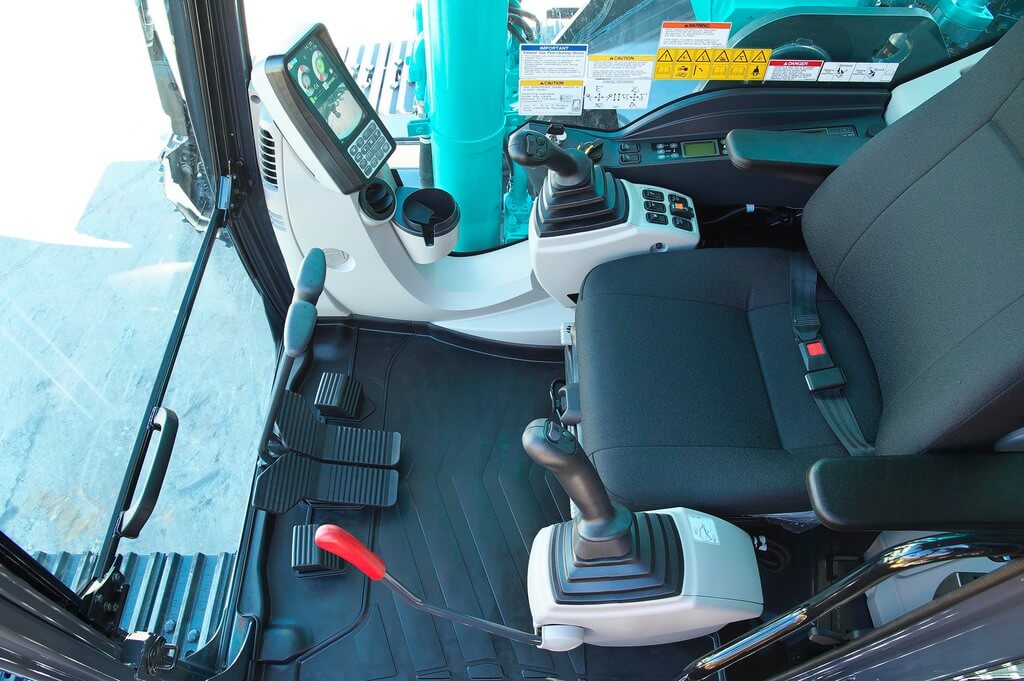

Image gallery

Product specifications

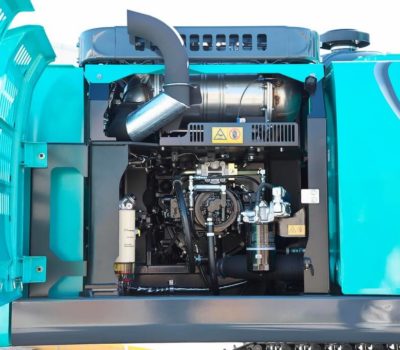

ENGINE
Model: HINO JO8EVV-KSDK
Type: Direct injection, water-cooled, 4-cycle diesel engine with turbocharger, intercooler
Fuel tank: 503 L
Displacement: 7.684 L
Rated power output: 213 kW / 2,100 min-1 (ISO14396)

HYDRAULIC SYSTEM
Type: Two variable displacement pumps + one gear pump
Max. discharge flow: 2 x294 L/min, 1 x 21 L/min
Swing motor: Axial piston motor
Hydraulic Oil tank: 245 L tank oil level, 410 L hydraulic system
Boom, arm and bucket: 34.3 MPa {350 kgf/cm2}
Power Boost: 37.8 MPa {385 kgf/cm2}
Travel circuit: 34.3 MPa {350 kgf/cm2}
Swing circuit 29.0 MPa {296 kgf/cm2}
Control circuit: 5.0 MPa {50 kgf/cm2}
Pilot control pump: Gear type
Main control valve: 8-spool
Oil cooler: Air cooled type

2 PC BOOM
Operating weight: 37,600 kg
Engine Rated Power: 201 kW/2,100 min-1 (ISO 9249) – 213 kW/2,100 min-1 (ISO 14396)

DIGGING FORCE
Bucket digging force (Short): 221 244*
Bucket digging force (Standard): 222 244*
Bucket digging force (Long): 221 243*
Arm crowding force (Short): 205 225*
Arm crowding force (Standard): 163 180*
Arm crowding force (Long): 140 154*
Short label: 2.6 m
Standard label: 3.3 m
Long label: 4.15 m
Power boost engaged: UNIT = kN * Power Boost engaged

TRAVEL FORCE
Travel motors: 2 x axial-piston, two-step motors
Travel brakes: Hydraulic brake per motor
Parking brakes: Oil disc brake per motor
Travel shoes: 48 each side
Travel speed: 5.6/3.3 km/h
Swing speed: 10.0 min-1 {rpm}
Drawbar pulling force: 332 kN (ISO 7464)
Gradeability: 70% {35 degrees}
