Conventional models SK300(N)LC-10

SK300(N)LC-10

Conventional models

Product specifications SK300(N)LC-10

Operating weight:
SK300LC-10: 30,000 kg – 31,400 kg

Engine rated power:
200 kW / 2,100 min-1 (ISO 14396)

Bucket capacity:
0.60 m3 – 1.40 m3

Image gallery

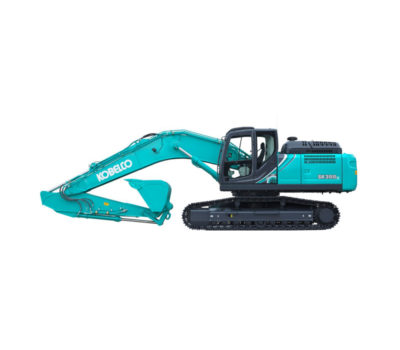

  • SK300(N)LC-10-1
  • SK300(N)LC-10-2
  • SK300(N)LC-10-3
  • SK260(N)LC-11
  • SK300(N)LC-10-4

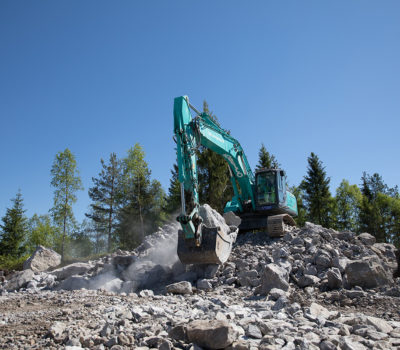

  • SK300(N)LC-10-5

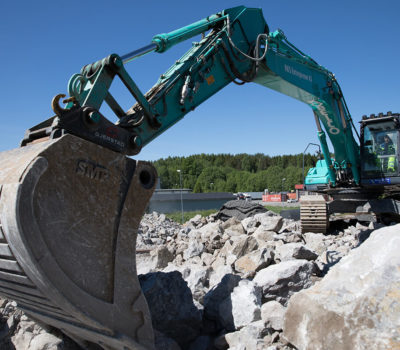

  • SK300(N)LC-10-6
  • SK300(N)LC-10-7

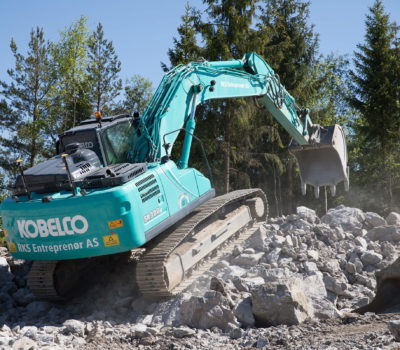

  • SK300(N)LC-10-8
  • SK300(N)LC-10-9
  • SK300(N)LC-10-10
  • SK300(N)LC-10-11

Product specifications

ENGINE
Model: HINO J08EVV-KSDP
Type: Direct injection, water-cooled, 4-cycle, 6-cylinder diesel engine with intercooler turbo-charger (Stage IV-compliant engine)
Fuel tank: 503 L
Displacement: 7.684 L
Rated power output: 200 kW / 2,100 min-1 (ISO 14396)

HYDRAULIC SYSTEM
Type: Two variable displacement pumps + One gear pump
Max. discharge flow: 245 x 2 L/min, 21 x 1 L/min
Swing motor: Axial piston motor
Hydraulic Oil tank: 245 (410) L tank oil level, 410 L hydraulic system
Boom, arm and bucket: 34.3 Mpa
Power Boost: 37.8 Mpa
Travel circuit: 34.3 Mpa
Swing circuit 29.0 Mpa
Control circuit: 5.0 Mpa
Pilot control pump: Gear type
Main control valve: 8-spool
Oil cooler: Air cooled type

2 PC BOOM
Operating weight: 31,400/31,300
Engine Rated Power: 200 kW/2,100 min
Bucket Capacity: 1,2

DIGGING FORCE
Bucket digging force (Short): 188 208*
Bucket digging force (Standard): 188 208*
Bucket digging force (Long): 188 208*
Arm crowding force (Short): 158 174*
Arm crowding force (Standard): 126 139*
Arm crowding force (Long): 105 115*
Short label: 2.40 m
Standard label: 3.10 m
Long label: 4.00 m
Power boost engaged: UNIT = kN * Power Boost engaged

TRAVEL FORCE
Travel motors: 2 x axial-piston, two-step motors
Travel brakes: Hydraulic brake per motor
Parking brakes: Oil disc brake per motors
Travel shoes: 50 each side
Travel speed: 5.2 / 3.1 km/h
Swing speed: 10.3 min-1 {rpm}
Drawbar pulling force: 280 kN
Gradeability: 70% {35 degrees}
